General Information: Connector part:

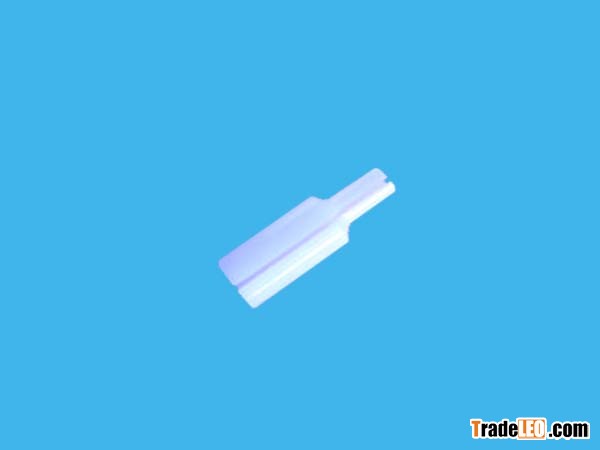

- SC Split type, Zirconia ceramic
Inner part:
- Concentricity <20µm, Ø 2.499±0.005mm (SC), Ø 1.246mm (LC)
Outer part:
- Ø 3.20±0.02mm (SC), Ø 1.62±0.02mm (LC)
Edge part:
- 2-R0.1, Both sides, Gap 0.2±0.1mm
Length part:
- 11.4±0.1mm
Performance:
- Acc. to IEC 61753-1 and Telcordia-GR-326-CORE standard.
Applications:
(1).Adapters
(2).Attenuators
(3).Test instruments
(4).Receptacles, TOSA/ROSA
Technical data:
Technical Data
Fiber Type
SM
Inner Diameter
Ø 2.499±0.005mm (SC), Ø 1.246mm (LC)
Connector Type
SC/LC Split
Concentricity
20µm
Insertion loss(Typical)
0.2dB
Insertion loss(Max)
0.3dB
Mating Durability(1000 times)
0.2dB
Pull out force
1-3N
Temperature Stability
0.1dB
Operation Temperature
-40?~+85?
Storage Temperature
-40?~+85?
