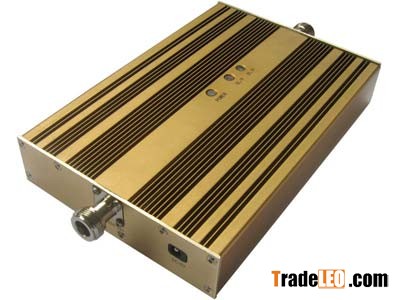

SR-14-1W
Technical Specification
Frequency range Uplink: 1920 – 1980MHz Downlink: 2110 – 2170MHz
Model SR-14-1W
Output power =13dBm
MAX. Gain =60dB
Noise Figure =6dBm
Pass band Ripple =5dB
Group Delay =0.5µs
Gain Flatness =6dB
ALC Range =20dB
Spurious Emission =-36dBm
VSWR =1.8
Inter-modulation =-45dBc
Other Specification
Impedance 50O
RF Connector N-Female
Dimensions 180*120*30mm
Weight 1.25kg
Power Supply AC100V – 240V DC5V
LED Status(PO=Output Power)
POWER Normal working: green
DL/P(downlink) Normal working: flash or red
