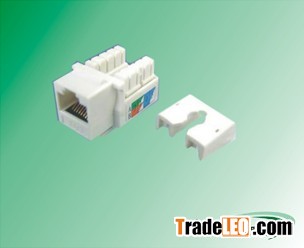

Brand:Lasun
Send Inquiry
Industry Standard: 1. UL, C(UL)listed
2. Meets FCC parts 68
3. ANS/TIA/EIA-568B
4. ISO/IEC 11801
5. ETL verified EIA/TIA T568B
6. Transmission performance
Physicals:
1. IDC connector accept 22-26 AWG solid wire
2. Jack wiring: 50 -micron inch gold plate over 100 -micron inch nickel
3. Housing: High impact flame retardant plastic UL94V-0 rated
4. IDC connector suitable for 110 punch down and Krone tool
Mechanical:
1. Plug insertion life: 750 cycle min
2. Plug retention force: 30 lbs min
Electrical:
1. Current rating: 1.5Amps
2. Insulation resistance: 500Mega-ohms min
3. Contact resistance: 20 Milli-ohms max
4. DC resistance: 0.1 ohms max
5. Data transmission rates up to 250Mbps
