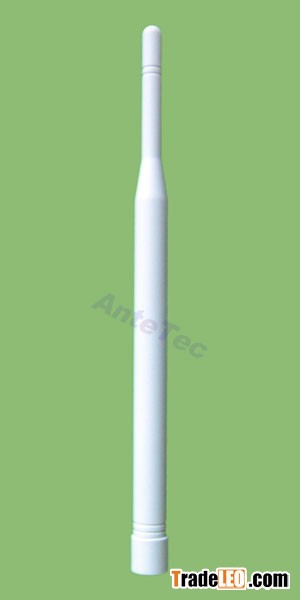

Name&P/N: AT025N8G4 / 1010250801 Category: GSM
Application: 0
Length(Metric)(mm): 100-200
Weight(g): 20-30
Frequency Range(MHz):
824-894
890-960
1710-1880
1850-1990
Max. Input Power: 50
Gain(dBi): 2
Imp.(O): 50
Connector: SMA
Beam Tilt Angle:
Horizontal Half-power Beam Width:(°)
Vertical Half-power Beam Width:(°)
Polarization: Vertical
Frequency Range (MHz)
824-894(GSM850), 890-960(GSM900),
1710-1880(DCS1800), 1850-1990(PCS1900)
Gain(dBi)
2
VSWR(max)
2.5:1
Impedance(O)
50
Connector
SMA male
Polarization
Vertical
Max Input Power (W)
20
Color
White
Dimensions(mm)
F13×190
Weight(g)
23
Relevant products: AT025N9G4, AT021N1G4
