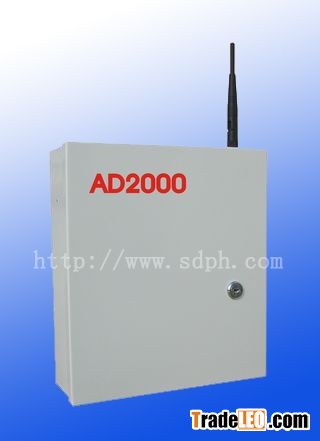

AD2000 GSM Panel have three main functions:Acquire & analyse electrical, environmental data,Anti-burglar alarm,remote control.It can be used in communications base stations, industrial control house and other important facilities.Function description
GSM module 850/900/1800/1900MHZ, automatically roam in the world.
4 Analog channel inputs:
1AC voltage input:AC0-300V(50HZ?60HZ)
1DC voltage input:DC0-60V
1DC current input:DC 4-20 mA
1temperature input:-30-+70?
2 Digital channel inputs(connect wired alarm sensors)
8 wireless alarm sensors inputs(315MHZ or 433MHZ)
2 relays output control
4 programmable SMS telephone numbers,2 programmable voice telephone numbers
Backup battery:DC12V/1.2AH
