Price:Negotiable

Send Inquiry

PoE Injector
2.1.1
15.4W PoE

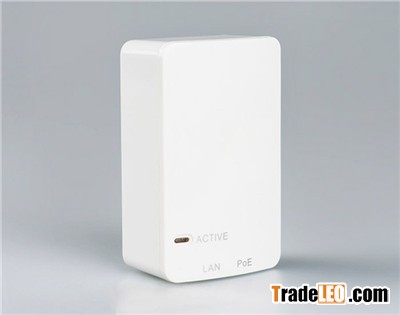

PT-PSE10GN PoE Injector
Standard
1. Output 48VDC/320mA
2. Power pin: 4/5(+),7/8(-)
3. Compliant with IEEE802.3af/at PDs
(1) Single-port Midspan
PT-PSE10GN connects with switch to get data, and provides PoE(Power and Data) to terminal PDs through Cat5 or Cat5e, and POE transmission distance is 100m.
(2) Provide power directly
PT-PSE10GN provides 48VDC power for IEEE802.3af/at standard PD directly.
(3) IEEE802.3af standard output
Output power 15.4W/320mA, that could meet power requirements of most of devices in market, like wireless AP, IP phone, network cameras.
(4) Play and Plug
PT-PSE10GN is a wall plug device. Install step: insert it in power socket and connect Ethernet.
