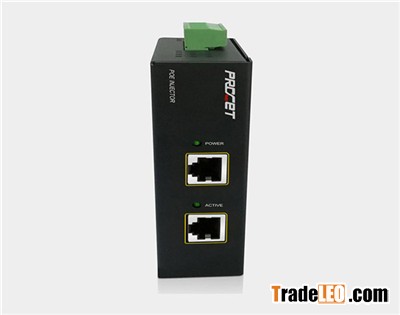

DC input PoEPT-PSE105G-E Indoor Single-port PoE Mid-span
Standard
1. Indoor using, 48VDC/650mA, PoE port 6KV(10/700us) surge-protection
2. Boost design, input voltage: 10-24VDC
3. Wide- temperature design: -40Celsius- +65Celsius
4. Rail slot on the back, can be fixed at guide rail
1. Boost PoE injector
PT-PSE105G-E connected with switch to exchange data, supply power through Cat5e cable to remote PD, effective distance is 100m.
2. Intelligence chip is inside, detective PD before supply power.
PT-PSE105G-E with intelligence chip inside, detective PD before supply power, if the PD is compliant with IEEE802.3af/IEEE802.3at standard,supply 48VDC power, if not do not supply power, avoid of device destroy and increase safety level.
