Brand:zk machinery/ chanson
Quantity:100
Send Inquiry

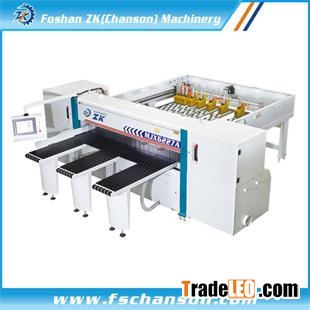

MODEL: MJX6227A /MJX6233A Max cutting length : 2700mm/ 3300mm
Max cutting thickness :110mm
Main sawblade dia. :F450×F80mm
Main saw speed : 4800rpm
Scoring sawblade dia. : F180×F60mm
Scoring saw speed : 6500rpm
Saw carriage backward speed : 70m/min
Main saw power : 16kw
Scoring saw power :1.1kw
Saw carriage driving motor : 1.5kw(AC Servo)
Auotomatic feeding motor: 1.5kw (AC Servo)
High pressure blower motor : 4kw
Air comsumption : 5-7kg/cm2
Total power : 24.1kw
Overall dimension(L×W×H) :5200×5600×1780mm
Dust-collecting mouth external dia.: 100mm
Voltage frequency(V/HZ): 380/50 (other voltage need customize)
