JMJ-04

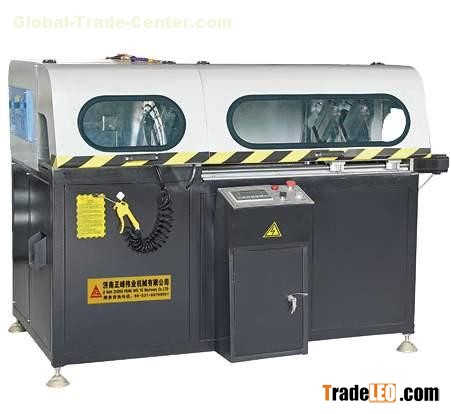

CNC Corner Automatic Cutting Saw for Aluminum Win-door

Main Features

1.It has features of easy operation, reliable performance, advanced technique and convenient maintenance etc

2.Used for connector of aluminum profile cutting,and for plastic profile cutting

3.imported cabide saw blade give accurate processing and high endurance

4.Linear bearing motion pair gave less resistance force and ensured high processing accuracy

5.Suitable for larege volume production

6.Clamping and feeding process adopt pneumatic control, it has features of high automation , reliability and production efficiency.

Technical Parameters

1. Power supply   380V 50HZ

2. Cutting motor power  3.0kw

3. Operation air pressure  0.5-0.8MPA

4. Motor rotary speed 3850r/min

5.Blade specification Ø500mm*Ø30mm*4.4mm Z=100

6. Cutting range 135*300mm

7. Cutting angle  90°

8. Overall dimension 1700*1400*1500mm(Support stand 3000mm)
