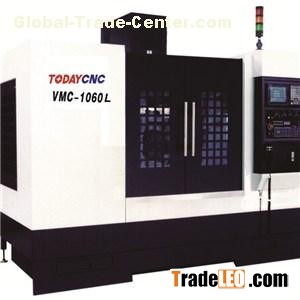

Today Standard Precision Machine Tool Co.,Ltd is a professional China cnc linear rail machining center vmc-1060l manufacturer, we are able to offer you best and cheap cnc linear rail machining center vmc-1060l and cnc linear rail machining center vmc-1060l for sale.Advantage ●High Rigidity,Heavy duty cutting------Lathe body used first class iron HT300,after eliminating stress and aging treatmentHigh-precision----------Adopt famous brand P3 class axis, to ensure high reliability, long life, low noise, small vibration, high precision.●High steadily------Used advanced MITSUBISHI system M70 series, to ensure high stability , fast, smooth surface,high precision●One time clamped parts,could finish milling, boring, drilling, reaming,and tapping process.Applicable to the plate, plate, shell type, precision parts processing, but also suitable for mold processing.●All machines are through the test of laser positioning correction and circular test. In order to ensure the best positioning accuracy and servo characteristics. And machine will be strict inspection measures to ensure that the accuracy of the machine's long-term stability.Main Specification ●Main Spindle Speed:12000 rpm●Main Spindle Power:11KW●Main Spindle Type:BT40●XYZ Travel: 1000 x 600 x 600●Tools quantities: 24●Rapid Feed Speed: 20000●Table Size:600 x 1300Main Configuration ●Japan's MITSUBISHI, FANUC or SIEMENS control system in Germany for optional●Japan's MITSUBISHI, FANUC or SIEMENS spindle motor, motor and drive shaft three●Taiwan famous brand spindle●Taiwan PMI/HIWIN, or Japanese THK or Germany Rexroth guide rail and ball screw●Taiwan famous brand 16T turnover type knife tool library●Japan’s NSK bearingTechnical Specification Lathe parameterVMC-850LVMC-1060LWork TableWorktable Area500 x 1000600 x 1300T-Slot5-18H85-18H8T-Slot Diatance90150RangeX-axle Range8001000Y-axle Range500600Z-axle Range500600Distance from Spindle Center to Column560650Distance from Spindle to work table110--61070-670SpindleSpindle TypeBT40BT40Spindle Power7.5KW11KWSpindle Speed8000rpm8000rpmFeedMax.Feed Speed12000 mm/min12000mm/minRapid Travel Speed(x/y/z)20000m/min20000m/minKnife Tool LibraryTypeDisc TypeDisc TypeTool quantities2424Tool Change Time--LocalizationPrecision Localization Accuracy±0.005/300±0.005/300Rapeat Localization Accuracy±0.003/300±0.003/300SizeL*W*H2400 x 2350 x 23303300 x2900 x 3000WeightMax Load Capacity800kg600kgMachine Weight8000kg5000kgStandard ConfigurationNameOriginBrandRemarkLathe bedChinaHigh strength dense cast iron (first class HT300), two aging treatmentNC SystemJapanMISUBISHIM70Guide railTaiwanPMI/HIWINX/Y axle PMI/HIWIN,Z axle Hard RailBall ScrewTaiwanPMI/hiwinKnife Tool LibraryDisc type with 20/24 toolsSpindleTaiwanCentralized LubricationTaiwanCooling SystemLarge Flow Cooling SystemSpindle Cooling-Guide Rail ProtectionX/Y/Z alxe Stainless Steel ProtectionCommunication InterfaceCF Card/USB interfaceOptional ConfigurationNC SystemN-g 20MAOptional Spindle Speed-Knife Tool Library16T.20T Turntable Style Tool LibraryFlat TongCombination PlateBT40 Lock Knife BlockBT40 HandleNC Dividing Plate(Fourth alxe)Quality Assurance Some Samples
