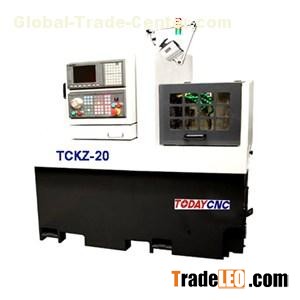

Today Standard Precision Machine Tool Co.,Ltd is a professional China single spindle swiss cnc lathe 20 manufacturer, we are able to offer you best and cheap single spindle swiss cnc lathe 20 and single spindle swiss cnc lathe 20 for sale.Advantage                                                                                                                                      ●High precision,High performance,High efficiency and Low cost machines●Tool configuration is two axle control,with faster tool-changing and high reliability●Equipped with high-speed precision synchronous rotary guide sleeve,and economical fixed guide sleeve for choice●It can accomplish 3 axis drilling machining,also optional install frontal and side drilling and milling machining●With Z-axis,one feeding material can reach 230mm.Obviously reduce feeding time,improve processing efficiency●Suitable for mass production of steels and stainless steels precision processing and drilling tapping at shaft end●Extensively applied on complex processing of Automotive,Electronic communications,Fax machine,Printers,Medical equipment,Household appliances,Locks and other industries of “slender shaft” parts and “Small precision”parts.Main Specification                                                                                                                         ●Max Spindle Speed: 6000rpm●Max Turning Length: 230mm●Axis Quantities:3 2●Tools Quantities:6 3 3●Max Machining diameter:ø 20mm●Spindle Motor:3.0KWMain Configuration                                                                                                                     ●Taiwan SYNTEC,Japan's MITSUBISHI, FANUC for optional●Japan's YASKAWA,MITSUBISHI, FANUC spindle motor, motor and drive shaft three for optional●Germany’s SKF, or Japanese THK guide rail ●Taiwan’s PMI ball screw●Japan’s NSK bearing●France’s Electric Switch and Electric Relay SCHNEIDER●Taiwan’s Penumatic system AirTAC●Taiwan’s Cooling SystemTechnical Specification                                                                                                               ItemTCKZ-16C0TCKZ-16C3TCKZ-16C4TCKZ-16TTCKZ-16NMax  Machining  DiaØ16mmMax  Machining  Length230mmMax  Spindle  Speed6000rpmMax   Spindle   Motor3.0KwControl   Axis   No.3 13 23 23 33 3Tools   No.9 36 3 36 3 46 3 25 2 3 2Turning   Tools   No.9   x    126   x    126   x    126   x    125   x    12Tools   for   fixed   drilling,boring3*ER16/4*ER113*ER16/4*ER113*ER11-2*ER11Side   Power   UnitTools-3*ER112*ER11 2*ER163*ER11       2*ER163*ER11Max   turning   speed-8000rpm4500rpm8000rpm    2500rpm8000rpmMotor   Power-ACO.4KWAC0.75KW0.4KW       0.75KW0.4KWEnd-face   Power   UnitTools----2*ER16Max   turning   speed----4500rpmMotor   Power----0.75KWFeeding   ParameterZ-axle   Range230mmZ-axle   Rapid   Travel   Speed24m/minMax.Cutting   Rapid   Travel   Speed16m/minMax.Tools   Change   Speed16m/minMachine   size   and   weightPower   Capacity6KVASize   of   Machine1850   x   900   x   1650mmNew   Weight1600kgStandard  ConfigurationSYNTEC  NC  SystemSpindle  pneumatic  clamp  systemCooling  SystemCentralized  Lubricating  SystemFull  enclosed  ProtectionFixed  Guide  Sleeve3  Color  LightAutomatic  Short  Parts  ReceiverOptional  ConfigurationMitsubishi  NC  SystemSynchronal  Rotary  Guide  SleeveAutomatic  Long  part  ReceiverExternal  Short  part  ReceiverOverlenght  part  processing  auxiliary  deviceGuide  sleeve
