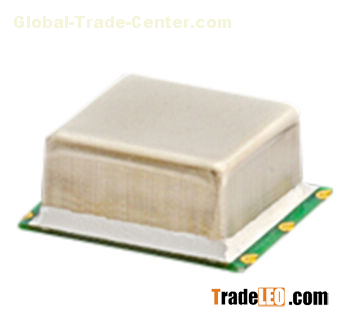

Brand:BCE
Model:25 x 25 x 12.7mm 36 x 27 x 19mm 20.2 x 20.2 x 12mm
MOQ:5 Pieces
Send Inquiry
- Frequency range: 30-300MHz
- Standard frequency: 30,100 and 300MHz
- Frequency stability:
- ±3×10-9 for 10MHz
- ±5×10-9 for 300MHz
- Operating temp range: -40-85℃
- Output: Sine 3dBm min
- HCMOS
- Aging at 25°C after 30 days operation:
- ±0.5ppb/day, ±50ppb/year for 100MHz
- ±2.0ppb/day, ±0.2ppm/year for 300MHz
- Voltage: 3.3, 5,12V
- Current consumption: 700mA maximum at turn-on, (at 5Vcc) 200mA maximum after warm-up at 25°C
- Short term stability: 1x10-11 for 100MHz
- 2x10-11 for 300MHz
- SSB phase noise (100MHz, typical):
- 105dBc@10Hz
- 135dBc@100Hz
- 148dBc@1kHz
- 155dBc@10kHz
- Carton size: 25 x 25 x 12.7mm
- 36 x 27 x 19mm
- 20.2 x 20.2 x 12mm
