Brand:BCE
Model:UM1/5
MOQ:1000 Pieces
Send Inquiry

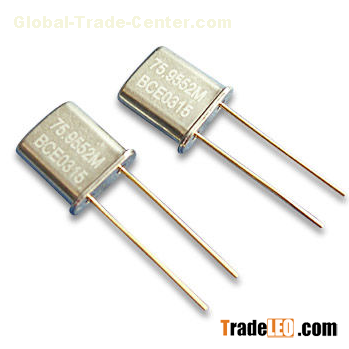

Mode: UM-1/5
Frequency range: 4 to 200MHz
Vibration mode: AT cut/fund, 3rd, 5th, 7th over tune
Frequency tolerance (at 25℃ ±2℃): ±5 to ±20ppm, ±10ppm typical Frequency stability: ±5ppm
Operation temperature range:-20 to 70℃
Resonance resistance
12 to 50MHz: Fund, 20Ω
35 to 120MHz: 3rd OT, 40Ω
75 to 200MHz: 5th OT, 70Ω
100 to 200MHz: 7th OT, 100Ω
Shunt capacitance (C0): 7pF maximum
Load capacitance (CL): 6pF to ∞, series
Drive level: 2 to 500uW
Insulation resistance: 500MΩ at 100V DC
Aging: ±2ppm/year
Packaging: UM1/5
