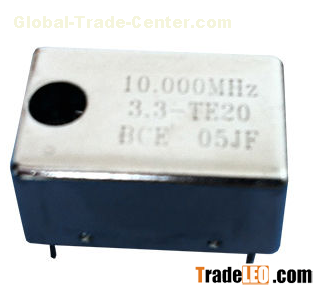

Brand:BCE
Model:DIP14,20.2×20.2×9.0mm
MOQ:10 Pieces
Send Inquiry
Frequency range: 2MHz~100MHz
Initial calibration tolerance (@25℃±2℃): ±1ppm typical
Frequency stability vs operation temp. range: +/-1ppm
Operation temperature range: -40~85C
Phase noise:-135dBc/Hz at 1KHz
Aging/year: ±1ppm
Supply voltage: 5.0V,8V,12V
Current consumption：10mA max
Output:
TTL/CMOS
Clipped Sine, 0.8Vp-p min@Load10kΩ//10pF
Start-up time: 2ms max
Frequency tuning range: ±3ppm typical by internal trimmer
Frequency voltage control range: ±5~±20ppm, ±10ppm typical
Control voltage range: 2.5V±2V
Linearity: 10% max
Storage temperature range: -55~+85℃
Package: DIP14,20.2×20.2×9.0mm
