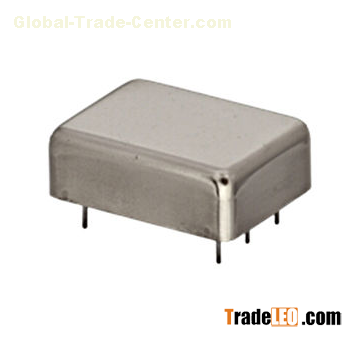

Brand:BCE
Model:36 x 27 x 16(12)mm
MOQ:5 Pieces
Send Inquiry
- Frequency range: 8～100MHz
- Standard frequency: 10, 20 and 100MHz
- Frequency stability:
- ±5×10-11 for 10MHz
- ±5×10-10 for 100MHz
- Operating Temp. Range: -40～85℃
- Output: Sine 3dBm min
- HCMOS
- Aging at 25°C after 30 days operation:
- ±0.1ppb/day, ±15ppb/year for 10MHz
- ±0.5ppb/day, ±50ppb/year for 100MHz
- Voltages: 3.3, 5V,12V
- Current consumption: 100mA maximum at turn-on, (at 5Vcc) 300mA maximum after warm-up at 25°C
- Short term stability:
- 1x10-12 for 10MHz
- 5x10-12 for 100MHz
- SSB phase noise (10MHz, typical):
- -105dBc@1Hz
- -140dBc@10Hz
- -155dBc@100Hz
- -162dBc@1kHz
- -165dBc@10kHz
- Carton size: 36 x 27 x 16(12)mm
