Frequency range: 1.8432 to 00MHz
Vibration mode: AT cut/fund, 3rd, 5rd and 7rd
Frequency tolerance (at 25 ± 2℃) ±10 to ±50ppm
Frequency stability :±20ppm
Operating temperature range:-20 to 70℃
Resonance resistance:
1.8 to 3.5MHz fund 400Ω
3.5 to 5MHz fund 100Ω
5 to 10MHz fund 40Ω
10 to 50MHz fund 25Ω
35 to 80MHz 3rd 40Ω
75 to 200MHz 5rd 70Ω
100 to 200MHz 7rd 100Ω
Load capacitance (CL): 8pF~∞, series
Drive level: 100uW
Insulation resistance: 500MΩ at 100V DC
Aging: ±3ppm/year

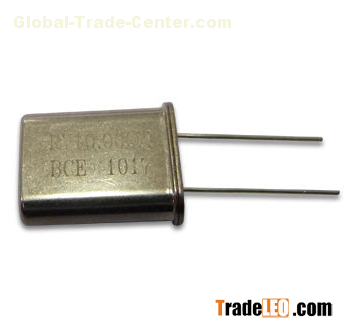

Package: 49U
