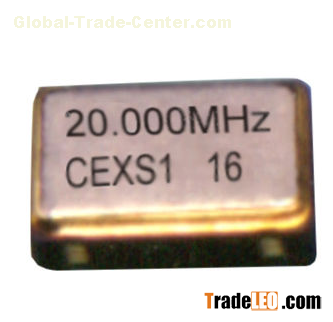

Brand:BCE
Model:5 × 3.2 × 1.0mm, 7 × 5 × 1.5mm
MOQ:50 Pieces
Send Inquiry
- Frequency range: 10 to 1500MHz
- Initial calibration tolerance (at 25℃ ±2℃): ±30ppm (typical) Frequency stability:±30~±100ppm
- Operating temperature range: -40 to 85°C
- Aging: ±5ppm
- Supply voltages: 3.3V
- Current consumption: 90mA (maximum)
- Load:100Ω
- Output: LVDS
- Voltage control: 1.65V ±1.35V
- Pulling: ±100ppm min
- Storage temperature range: -40 to 85℃
- Packaging: 5 × 3.2 × 1.0mm, 7 × 5 × 1.5mm
