IDRFID Technology Co.,Ltd is one of the leading nfc small tag manufacturers and suppliers, welcome to buy nfc small tag, midas inlay from us.

Product model

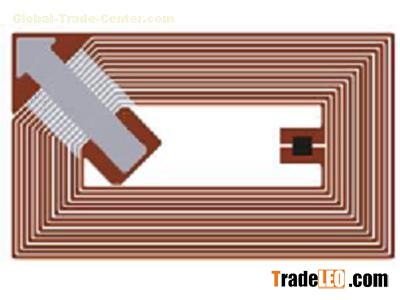

NFC small tag

IC

NXP NTAG213

Memory

1152 bit / 144 byte

Frequency

13.56 MHz   ISO18092

Antenna Size

10 x 17 mm / 0.39 x 0.67“

Die-cut Size

12 x 19 mm / 0.47 x 0.75“

Web Width

24 mm / 0.95“

Operating Temperature

-20°C to 70°C / -4°F to 158°F

Bending Diameter (D)

> 50 mm, tension max. 10 N

Delivery Formats

Dry inlay, wet inlay

Adhesive

Acrylic, hot melt adhesive

Adhesive Usage Temperature

min. -40°C to 150°C / min. -40°F to 302°F

Qty/Reel

5,000 per reel

Core Size

76 mm / 3“

Shelf Life: minimum of 2 years from the date of manufacture in

20°C / 68°F, 50% RH
