ER-150

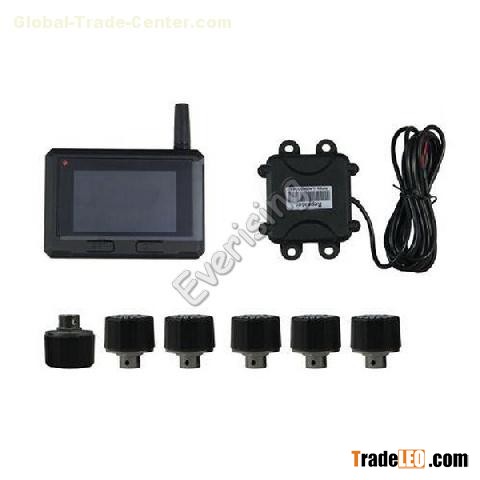

Truck Tyre Pressure Monitoring System TPMS Sensor tpms system, tpms valve tpms  pressure air pressure tyre

1.With big LCD screen,6-22 sensors for option.
2.With repeater,could receiver the far away singal.
3.Light weight design for the sensor,no need to adjust to balance when the tire moving.
4.Monitoring the tempreature and pressure with high degree accuracy, displa for 6-22 tires at the same time.
5.Save gas,forsee air leakage,reduce tire wearout,balance tire pressure,ensure safety driving.
6.RF wireless technology,can auto-alarm,when tire pressure and temperature is abnormal.
7.With two pressure unit"PSI,BAR " and two temperature unit"℃,℉" for option.
8.Support tire position exchange function.
9.Sensor protection grade:IP5K4K.
Displayer Parameter
Working Temperature:(-20℃-85℃)
Storage Temperature:(-20℃-85℃)
Input Voltage:DC9V-30V
Transmitting Frequency:433.92MHz
Size:85*42.5*22mm
Weight:137g
Repeater Parameter
Input Voltage:DC9V-30V
Transmitting Frequency:433.92MHz
Sensor Parameter
Working Temperature:(-20℃-80℃)
Storage Temperature:(-20℃-80℃)
Pressure Range:0-188.5psi（0-13bar）
Pressure Precision:±1.5PSI（±0.1bar）
Temperature Precision:±3℃
Transmitting Power:<5dbm@50Ω
Transmitting Frequency:433.92MHz
Internal Battery Life:>5 years
Internal Size:14mmx22mm
Internal Weight:78g
External Battery Life:>2 years
External Size:14mmx22mm
External Weight:18g
