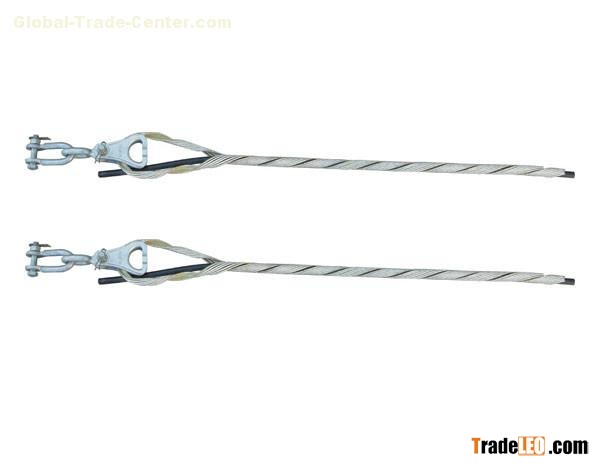

Tension Set for Short Span ADSS
COMPONENT
single layer glue thread, thimble, extension loop, U-shaped hanging loop, bolt, nut etc.
CHARACTERISTIC
Simple structures, easy installation, and to lower the costs of the project.
ConDITIONS FOR THE USAGE
Optical cable projects with smaller span, line angle of greater than 15° and RTS less than 15kN.
INTENSITY
30KN
Description
| Model | Grip(KN) | Length of Armor Rods(mm) | Estimated Weight(KG) |
| ADN-10-* * | 10 | 1000 | 1.4 |
| ADN-13-* # | 13 | 1300 | 1.5 |
| ADN-15-*# | 15 | 1500 | 1.6 |
NOTE** 1. representing the outer diameter of the optical cable (mm).
2. The hardware fittings for special center pipe thin cable can be
configured according to parameters of the optical cable
