Splice Closures for ADSS

ConDITIONS FOR THE USAGE
Excess length of fiber connecting and branch-connecting. It's fit to each structure of 12-72core cables with its diameter less than 18.5mm in overhead lines.
STRUCTURE CHARACTERISTIC
1. Excess length of fiber is protected in stacking tray, each one is a space for 12 cores fiber. Hot-melting & hot-shrinking with a covering-pipe toprotect is the connecting form.
2. Stacking tray is designed as unattached tray for free operating without affecting each other.
3. The adoption of sealed gaskets and cone-shaped sealed gasket is suitable to cater different cables diameter, four cables should be installed in a splice closure if you need. It's convinent to be repaired as a result of the structure which is easy to open and close.
4. The metal parts of the cables should be lead out during the installation. We've prepared special fixed brackets which is safe and easy to install.
CAPACITY PARAMETER
Stacking semi-diameter: ≥40mm
Length of stacking rest: ≥1.6m
Degree of seal : 1 05Kpa
Temperature scale : -40   60
Anti-tension : 2000N
Anti side-pressure : 2500m/10cm
 Anti-wallop : 1 8N·m
SIZE

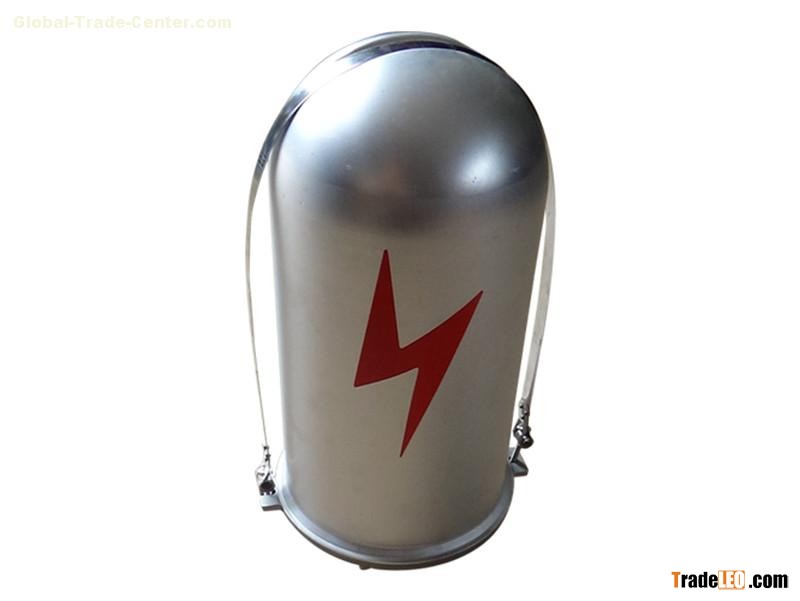

Outline: cylinder (stand)styles.
