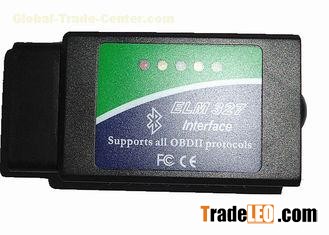

ELM327 bluetooth Diagnostic Tool ELM 327 Bluetooth OBD2 CAN BUS Scanner obdii tool

ELM327 Bluetooth Software OBD2 CAN-BUS Scanner Tool

Functions:

• Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
• Clear trouble codes and turn off the MIL ("Check Engine" light)
• Display current sensor data, including:
• Engine RPM
• Calculated Load Value
• Coolant Temperature
• Fuel System Status
• Vehicle Speed
• Short Term Fuel Trim
• Long Term Fuel Trim
• Intake Manifold Pressure
• Timing Advance
• Intake Air Temperature
• Air Flow Rate
• Absolute Throttle Position
• Oxygen sensor voltages/associated short term fuel trims
• Fuel System status
• Fuel Pressure
• Many others.

Features

OBD SCAN is the newly developed wireless scan tool. It supports all OBD-II protocols

• Automatic
• SAE J1850 PWM(41.6Kbaud)
• SAE J1850 VPW(10.4Kbaud)
• ISO9141-2(5 baud init,10.4Kbaud)
• ISO14230-4 KWP(5 baud init,10.4 Kbaud)
• ISO14230-4 KWP(fast init,10.4 Kbaud)
• ISO15765-4 CAN(11bit ID,500 Kbaud)
• ISO15765-4 CAN(29bit ID,500 Kbaud)
• ISO15765-4 CAN(11bit ID,250 Kbaud)
• ISO15765-4 CAN(29bit ID,250 Kbaud)
• A.SAE J1939 CAN(29bit ID,250*Kbaud)
• B.USER1 CAN(11*bit ID,125*Kbaud)
• C.USER2 CAN(11*bit ID,50*kbaud)
• default settings(user adjustable)

Output Protocol: RS232 to bluetooth

Frequancy: 38400

Voltage: 12V

Current: 45mA

Bluetooth: 10M

Supported platform: Andriod, Symbian, Windows Mobile, palm, pc, pocket pc.

Software:

1. For Andyiod: Torque+1.5.58+

2. For Symbian: OBDScopev1.21

For WindowMobile-palm-pc-pocket pc:

3. ScanMaster--ELM v2.1-pc

4. PCMSCAN-pc

5. OBD2Spy

6. ELM327-V1.2-pc

7. EasyOBDII

8. wOBDCRAZY

software CD is included.

Size: 88*46*25

Packing List:

1 EOBD / OBD2 Main Unit

1 CD-ROM
