Brand:gzcleanroom

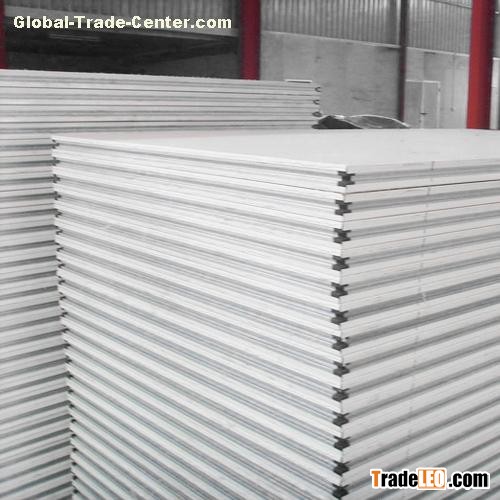

Model:Color steel foam sandwich panel
MOQ:-0 -
Magnesium oxide panel(Hand made) Gzcleanroom.com is a cleanroom full service construction under GMP request. It could be customized. Turnkey project.
Modular design, easy install and maintenance;
Compact structure and elegant appearance;
One step service and customized
| Color steel foam sandwich panel / Handmade Magnesium oxide Sandwich panel | ||
| Type | Color steel foam sandwich panel (overlap joint) | |
| Dimensions | Thickness | 50-200mm |
| Width | 1180mm (effective width) | |
| Length | Less than 11.8m | |
| External face | Material | PPGI |
| Thickness | 0.3-0.7mm | |
| Thickness of the zinc | - | |
| Corrosion protection | Color coated | |
| Coating | Polyester | |
| Thickness of coating | 20 micron | |
| Color | According to the RAL | |
| Pattern | Nearly plain | |
| Insulation | Optional foam Material | EPS;Rock wool;PU |
| Thickness | 50-200mm | |
| Density | 200-220kg/m3 | |
| Thermal conductivity | ≤0.055W/m.K | |
| Internal face | Material | PPGI |
| Steel thickness | 0.3-0.7mm | |
| Color | Grey white or customized | |
| Corrosion protection | Color coated | |
| Coating | Polyester | |
| Thickness of coating | 7micron | |
| Pattern | Plain | |
If you want a clean room, what should you do?
1. Firstly, confirm the class of clean room you need according to the below table;
2. Secondly, provide the dimension of the clean room(L*W*H);
3. Last but not least, please provide a floor plan layout, even it is a draft.
And then, we will check it and provide you a quotation.
