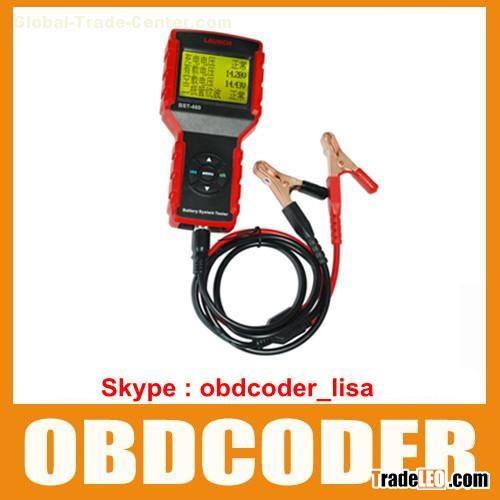

BST-460 Battery System Tester AP
Launch battery system tester, with world's most advanced conductance testing technology, can easily, quickly and accurately measure the actual cold cranking current capability to judge the health status of the battery itself, and to detect common faults of both starting and generator charging systems, which help maintenance personnel to achieve quick repair to the vehicle trouble.
| Feature |
| Product principle : Advanced conductance test technology Scope: suitable for 6V & 12V battery system and 12V & 24V starting and charging system detects Product advantage : Simple, secure , fast , and accurate display test results ( the test takes about 3 seconds) Eight lines with backlight LCD display and humane language prompted interface Does not emit light , no heat , no discharge , no spark , no operating dangerous Automatic temperature compensation function With ripple voltage test function Multi- language menu display Removable replacement test line Dedicated Kelvin test clip advanced functionality : Applicable to a variety of models, all kinds of batteries , and a variety of system mode Directly detected in the car , do not need to remove the battery Directly test the battery of the loss of electricity , bad cell battery advanced starter / alternator detection test criteria and scope : CCA 100-2000 (SAE & BCI to develop the standard most commonly used : the cold-start battery rating ) BCI 100-2000 ( international battery Committee standards ) CA 100-2000 (0 when the effective starting current rating) MCA 100-2000 ( ships standard effective starting current rating , 0 ) JIS 26A17 - 245H52 ( Japanese Industrial Standard) Standard DIN 100-1400 ( German Automobile Industry Committee ) The IEC 100-1400 ( International Electrotechnical Commission standard ) EN 100-2000 ( European Automobile Manufacturers Association standards ) SAE 100-2000 ( U.S. Engineers Standard) GB 100-1400 ( Chinese National Standard ) |
| Specification |
| 1 , the structure size : 90 * 182 * 37mm 2 , shell ABS anti - acid plastic , two-tone green rubber oil ; 3,128 * 64 dot matrix , large backlit display screen (3 inches ) , adjustable backlight brightness LCD display ; 4 , test standards , including the most commonly used battery standard in the world , such as CCA, BCI, CA, MCA, JIS, DIN, IEC , EN , SAE , GB ; 5 Operating temperature : -20-55 (-4-131 ) 6, weight : 520 g; |
