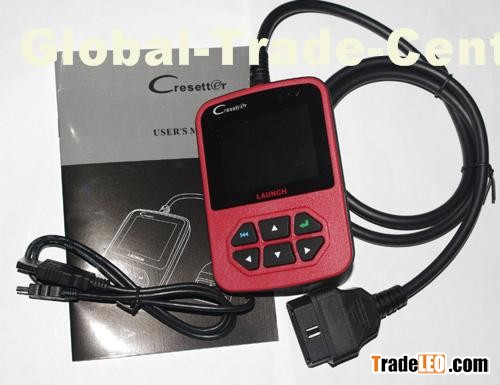

Cresetter is a pecialized automotive diagnostic tool for resetting the automotive service lights, which is developed on the 6th generation CReader hardware platform. This product has applied the latest Cortex-M3 32-bit processor, 2.8" color LCD display, which is smart, portable, and simple to use. After repaired and serviced the vehicle, the maintenance man can use it to clear or reset the warning lights on the instrument cluster to eliminate the unnecessary warning, which can make the car owners driven at ease.


Feature

Main function
a) Oil lamp Reset
Additional function(for special models)
b)Airbag ECU Reset
c)Brake pads Reset
d)Air filter indicator Reset
e)Spark plugs Reset
f)Maintenance interval set

Specification

 Screen: 2.8’’ TFT 262K true color, 320*240 Pixels LCD display
Input voltage range: 8 ~ 32V
Operating current:<100mA@12V(Typical)
Power consumption: <1.2W(Typical)
link connection: Standard OBD 16-pin DLC
Operating temperature: 0 ℃ ~ 50 ℃
Storage temperature: -20 ℃ ~ 70 ℃ @ RH 60%
Outline dimension: L * W * H = 121 * 82 * 26mm
Weight: <500g per set
