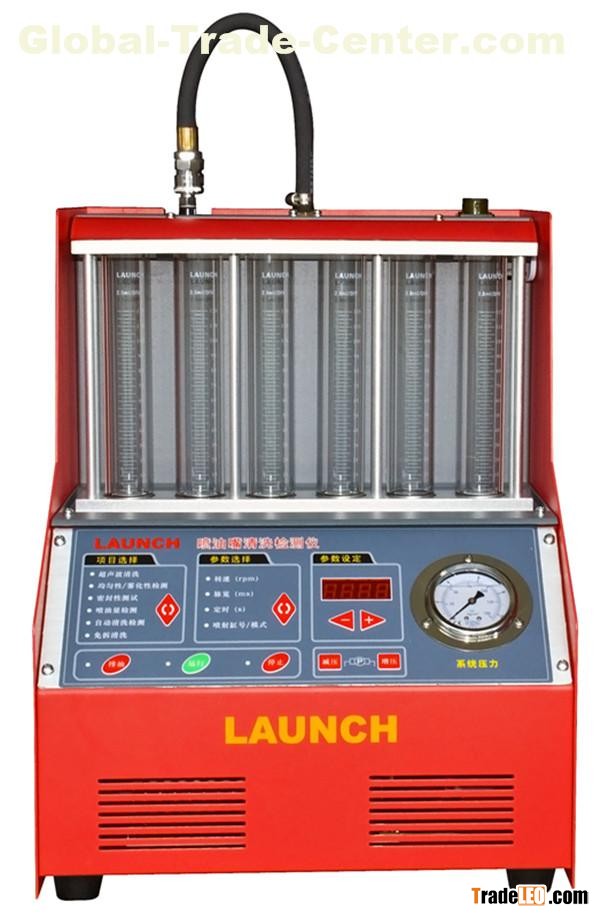

Feature

* Ultrasonic cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.

* Uniformity/Sprayability test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.

* Leakage test: To test the sealing and dribbling conditions of injectors under system pressure.

* Injecting flow test: To check the injecting amount of the injector in 15 seconds of constant injection.

* Auto. test: To test injectors by simulating different working conditions.

* On-vehicle cleaning: The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle.

Specification

* Power supply: AC220V±10%, 50/60Hz AC110V±10%, 50/60Hz.

* Input power: 250W;

* Ultrasonic cleaner power: 100W;

* Simulated RPM range: 10~9990rpm; step: 10rpm;

* Time range: 1~9999s;

* Pulse width: 0.5~25ms; step 0.1 ms;

* Fuel tank capacity: 4700ml;

* Dimensions: 385mm×410mm×500mm;

* Weight: about 43kg

Spare Parts

No. PartCode PartName

1  105020217  CNC pulse signal connection cable 1,T=0.5

2  105020218  CNC pulse signal connection cable 2,T=0.8

3  103260037  Ultrasonic cleaner assembly 100W

4  106030038  On-vehicle adaptor package(tool kits)

5  107010428  CNC-602A user manual(En&Ch)

6  103250013  Top-supply connector 1

7  103250015  Swiss thread adaptor for fuel top-supply injector

8  103250016  Coarse thread adaptor for fuel top-supply injector

9  103250018  CNC-601/801 Hexangular stopper

10  104990012  CNC-801 BUICK injector adaptor

11  199010019  Injector testing liquid

12  307030024  Injecter detergent
