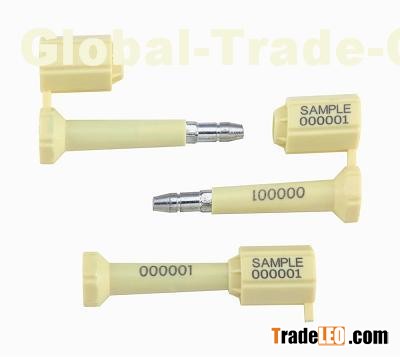

Model PY-6010

Description •Confirm to new edition of ISO/PAS17712:2013 standard requirement

•Bolt diameter is 8mm, cylinder diameter is 18mm

•Outer ABS plastic coated

• Both bolt and cylinder are made of high quality low-carbon steel

•Advanced anti rotation function( hexagon shape in cylinder and bolt ), to keep the locked seal can not be rotated out

• Company name or LOGO and sequential numbers can be laser printed on seals

•Bar code is available

•Various colors are available

Technical parameters high quality low-carbon steel

•Bolt diameter is 8mm, bolt cap diameter is 18mm, bolt length is 81.5mm;cylinder diameter is 18mm

•ABS coated cylinder diameter is 21.5mm,ABS coated cylinder length is 34mm

• Tensile strength: >17KN

Application • Ocean containers shipping, all kinds of ISO containers

• Van trucks, tank trucks

Package Packing: 10pcs/box,250pcs/ctn

Carton Dimension:48.5x33.5x15cm

Weight G.W.: 21KG

N.W.: 20KG
