1． Control interface

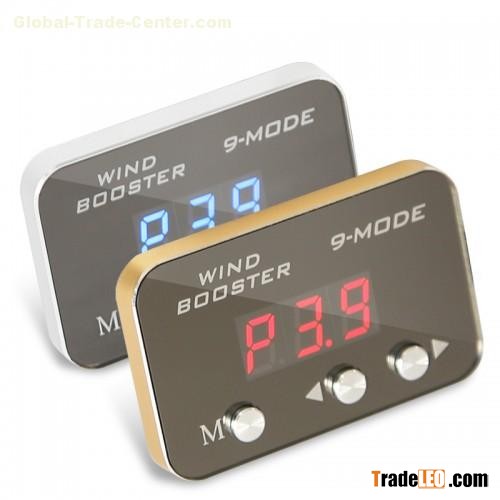

As the picture above, there are three buttons at the bottom of the display panel: M,
SUB, ADD. There are status and sensitivity LEDs in the middle of the display panel. The status digital LED including P1, P2, P3, Econ and Normal mode. The sensitivity LED including 1-10 steps while in P1, P2, P3 and Econ modes.
2． P1 mode

P1 is the standard sport mode. The throttle response is faster than the stock, you can change the sensitivity by pushing the ADD and SUB buttons.
3． P2 mode

P2 is the ultra sport mode. The throttle response is 50% faster than P1 mode, you can change the sensitivity by pushing the ADD and SUB buttons.
4． P3 mode

P3 is the ultra racing mode. The throttle response is 50% faster than P2 mode, you can change the sensitivity by pushing the ADD and SUB buttons.
5．Econ mode

Econ is the economical mode. The throttle response is slower than the stock, you can change the sensitivity by pushing the ADD and SUB buttons.
6． Normal mode

Normal is the stock mode.
7． AT/MT mode

AT status

MT status

Pushing the M button 3 seconds will invoke the AT/MT setup mode. The digital LED display “88” means AT transmission mode or “00” means MT transmission mode. You can change the mode by pushing the ADD and SUB buttons. Pushing the M button again will escape the AT/MT setup mode.
CAMMUS is a registered brand of CAMMUS. This product specification applies to CAMMUS 9-MODE throttle controller colorful version.
