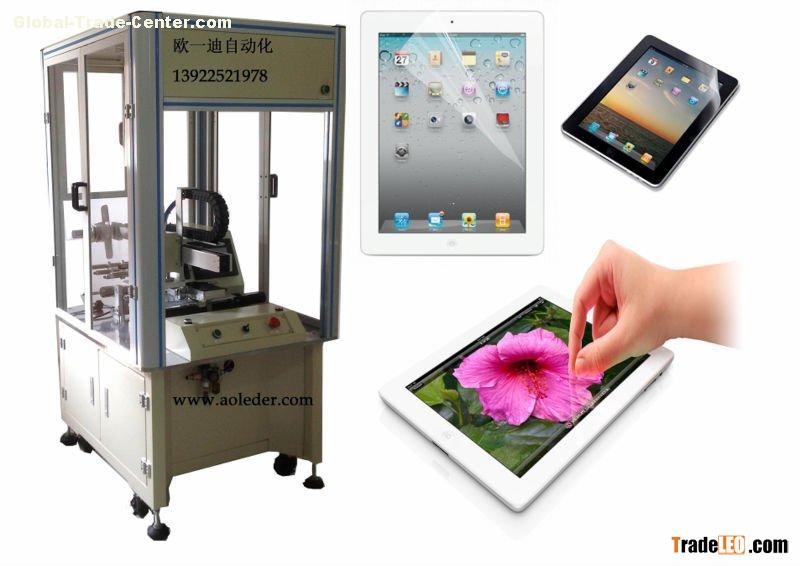

★Film attachment machine   applications:

1,Can automatically attach protective film, explosion-proof film. Equipment used in touch panel, mobile phone lens, navigator screen, glass windows, LED screen etc.
2,Equipment make the attachment more accurate, efficient, universal, the machine has high efficiency and automation degree, convenient operation, automatic feeding, automatic tear film, automatic attachment as a continuous composite motion mode.only one person can complete the whole machine operation, the improvement of product quality and manual labor intensity, reduce costs and get rid of the excessive dependence on staff proficiency.
3,Equipment is mainly composed of PLC, servo motor, precision mechanical hand, sticking mechanism, feeding mechanism, material receiving mechanism, human-machine interface, FFU filtering devices and other components, has been widely used in flat panel display industry.

★Film attachment machine characteristics:

1, import servo motor driven feed, import of optical fiber sensor.
2, precision mechanical hand to achieve film lamination  action.
3, use right-angle edge positioning and vacuum adsorption fixing, the operation is simple and convenient.
4, import of PLC control, touch screen human-machine interface, parameter setting browse simple intuitive, convenient and easy operation, can be set to modify the parameters and storing multiple groups of different products.
5, a photoelectric inductive XY realize two-axis calibration function, and equipped with a micrometer can make the XY orientation precision, thus ensuring higher laminating precision.
6, use the unique special structure to achieve product surface smooth, no bubbles, no wrinkles.
7, light with LED energy-saving lamp,saving cost.
8, the whole machine structure hommization, safe operation, beautiful shape.

★Film attachment machine specifications and parameters:

1, tracheal diameter:Φ 12mm
2, working gas pressure:0.4-0.6MPa
3, working power supply:220V  50HZ
4, feed rate: adjustable
5, lamination accuracy:± 0.1mm
6, lamination size: 2.0-5.0inches
7, correction methods: X, Y correction
8, incoming film method: roll material
9, staff equipment : one person with one machine,responsible for feeding panel and recovering finished panel.
10, working cleanliness: class 100 FFU high-efficiency filtering device ( optional )
11, lamination efficiency:8-12pcs/min    (depends on the panel size)
12, machine size:1200( L ) *950( W ) *1730( H ) mm

★Aoleder film attachment machine ATM - 1 adopts Japan, Germany, Taiwan, and other brand parts, the design is novel, the operation is safe, long durability and stability is strong, sticking film without bubble and no scratches, sticking film accuracy, sticking film with high efficiency,long use cycle  and so on advantages.

★The company related film attachment machine products show below：
Film attachment machine (2.0-5.0 inches)(ATM-1)
Multi-function film attachment machine (2.0-5.0 inches)(ATM-2)
Film attachment machine (5.0-9.0 inches)(ATM-3)
Backlight reflection film attachment machine (2.0-5.0 inches)(AFS-1)
Backlight multistage film attachment machine (2.0-5.0 inches)(ADM-1)
【Application of film sorts products :  protective films, explosion-proof films, reflective films, diffusion films, bright enhancement films (BEF), optical masking and shading film and so on. 】
