Brand:SUPERB
Model:MS103.3-5
MOQ:1 Sets
1)Application:

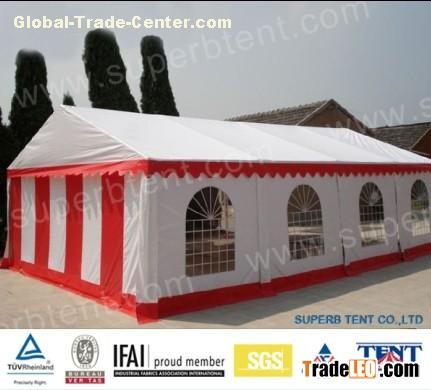

The big clear span tents(MS series, A frame) can be widely used as the wedding tent, party tent, exhibition tent, conference tent, different kinds of festivals tent, hajj tent, corporate events tent, sports tent, & temporary, semi-permanent or permanent building purpose etc.
2)Materials:
Fabric: Double PVC coated polyester fabric, 650-900g/sq. m, water proof, UV resistance, anti-mildew, self-cleaning, fire retardant according to standard NFPA701 & DIN4102 B1/M2
3)frame:
Hard pressed extruded aluminum 6061/T6, anodized surface finishing.
Main frame profile size: 152*120*4mm ;
4)Connections:
Hot-dip galvanized steel;
5)Life span:
Life span of fabric(cover & sidewalls): 8-10years;
Life span of aluminum frame: 20-30years
6)Structure safety parameters:
Wind load: 100km/h (0.5kn/M2)
Snow load: 25kg/sq.m
7)Color available:
White, red, yellow, blue, green, black, grey, transparent etc
8)Optional Accessories:
Ground anchor, anchor puller, weight plate, glass door, fire door, glass wall, ABS hard wall, Sandwich walls, auto-rolling door, decoration lining, flooring system, clear PVC windows sidewalls, transport rack for the glass door & walls, ramp etc; chairs , tables, & other furniture for the parties are also provided for your option.
Specification for the big clear span tents (MS series, A frame), pls refer to chart:
| Type | Span (m) | Side height (m) | Ridge height (m) | Bay Distance (m) | Roof Pitch | Longest Component (m) | Wind Load (km/h) |
| MS8/3.3-5 | 8 | 3.3 | 4.5 | 5 | 18° | 5.7 | 100 |
| MS10/3.3-5 | 10 | 3.3 | 5 | 5 | 18° | 5.7 | 100 |
| MS12/3.3-5 | 12 | 3.3 | 5.3 | 5 | 18° | 6.5 | 100 |
| MS15/3.3-5 | 15 | 3.3 | 5.8 | 5 | 18° | 5.7 | 100 |
| MS16/3.3-5 | 16 | 3.3 | 5.7 | 5 | 18° | 6.5 | 100 |
| MS18/3.3-5 | 18 | 3.3 | 6.3 | 5 | 18° | 6.5 | 100 |
| Main frame Profile | 152x120x4mm(4-channel) | ||||||
| Eave Connection | Hot-dip Galvanized Twin Steel Plate | ||||||
| Roof Fixing | Bar Tension | ||||||
| frame Material | Hard Pressed Extruded Aluminum 6061/T6 | ||||||
| Cover Material | Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,650-900g/sq.m | ||||||
