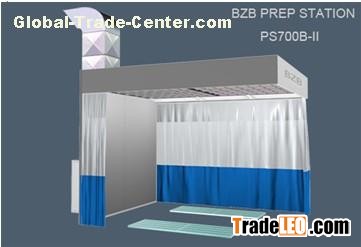

Outside dimension：

 L7550*W3550*H3150mm

Inside dimension：

L6300*W3450*H2700mm

Plenum dimension：

 L6400*W3550*H450mm

basement：

without basement；2 pits for grill

Illumination system：

 ceiling light：36W*4*8units=32pcs；power：1.15KW

Glass：

tempered glass

Air ventilation system：

1. 5.5kw one set inner motor centrifugal fan with air volume 15400m3/h

  2. generator cabin dimension：L1300*W1200*H1600mm

3. electric damper to control the air inlet and outlet volume

Cabin system：

  1. air intake plenum is made of cold-rolled sheets

  2. ceiling boards are made of galvanized steel sheets

  3. PVC manual curtains around the sides and slipping on the aluminum alloy rails

  4. 50mm EPS panels at the back wall

Generator system：

  rear exhaust；square tube frame；power coated

Heat system：

without

Filtration system：

primary filter；ceiling filter；glass fiber filter

Control system：

controls fan, electric damper, and illumination only

Installation way：

 sling hoist or square tube support

Voltage frequency：

 380V/3P or 220V/1P, 50Hz

Total power：

7KW
