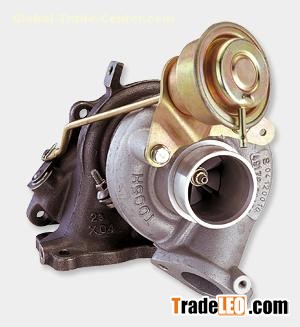

EVOI~III -  TD05H-16G

Complete Turbo Compressor Turbine

SYSTEM Journal Bearing A/R 49 Nozzle Area 7 cm2

MODEL TD05H-16G Wheel Dia. 48.3/68 mm Wheel Dia 49.2/56 mm

P/N M5167 CFM 580

Application 4G63 EVO3/Eclipse/VR4 Actuator 0.8 Bar

MAX HP 380+ HP

Application:4G63 EVO3/Eclipse/VR4

EVO IV~VIII - TD05H-16G

Complete Turbo Compressor Turbine

SYSTEM Journal Bearing A/R 58 Nozzle Area 10.5 cm2

MODEL TD05HR-16G Wheel Dia. 48.3/68 mm Wheel Dia 49.2/56 mm

P/N M5160 CFM 580

Application 4G63 EVOIV~VIII Actuator 1 Bar

MAX HP 380+ HP

Application:4G63 EVOIV~VIII

EVOI~III -  TD05H-20G

Complete Turbo Compressor Turbine

SYSTEM Journal Bearing A/R 49 Nozzle Area 7 cm2

MODEL TD05H-20G Wheel Dia. 52.6/68 mm Wheel Dia 49.2/56 mm

P/N M5207 CFM 580

Application 4G63 EVO3/Eclipse/VR4 Actuator 0.8 Bar

MAX HP 430+ HP

Application:4G63 EVO3/Eclipse/VR4

EVO IV~VIII - TD05H-20G

Complete Turbo Compressor Turbine

SYSTEM Journal Bearing A/R 58 Nozzle Area 10.5 cm2

MODEL TD05HR-20G Wheel Dia. 52.6/68 mm Wheel Dia 49.2/56 mm

P/N M5200 CFM 580

Application 4G63 EVOIV~VIII Actuator 1 Bar

MAX HP 430+ HP

Application:4G63 EVOIV~VIII
