| Car DVD With value="3" tcsc="0" unitname="g" w:st="on">3G Internet Manufacturer Specifications

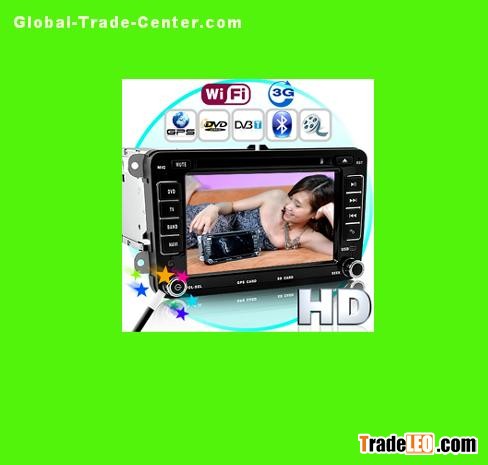

Volkswagen Edition - In Dash Car DVD With value="3" tcsc="0" unitname="g" w:st="on">3G Internet (WIFI, 2DIN, GPS, DVB-T)
Designed for Volkswagen Vehicles:
- Passat B6
- Passat B7
- Passat CC
- Jetta 2005-2008
- Golf 2003~2009
- Skoda Superb
- Tiguan
- Touran
Primary function: 2-DIN Car DVD Player with GPS, DVB-T, WIFI, and value="3" tcsc="0" unitname="g" w:st="on">3G Internet Access
Main system information
- Motherboard: Telechips TCC8900
- Core CPU: ARM 1176JZF-S (500MHz)
- GPU: ARM Mali-200 (200MHz)
- Internal memory: 256MB RAM, 256MB Nand Flash
- External memory: SDHC card (up to 32GB) and USB drive (up to 32GB)
- Default baud rate: 9600
- COM port: 2
- Operating system: Windows CE 6.0 GPS information
- Receiver module: MediaTek GSvalue="92" tcsc="0" unitname="m" w:st="on">-92m-J
- Frequency: 1.575.42 GHZ
- C/A Code: 1.023 MHZ
- Signal channels: 32
- Tracking sensitivity: -157dBm
- Position sensitivity: value="10" tcsc="0" unitname="m" w:st="on">10m, 2D RMS; value="5" tcsc="0" unitname="m" w:st="on">5m, 2D RMS , WAAS enable
- Speed rate: value=".1" tcsc="0" unitname="m" w:st="on">0.1m/s
- Data update rate: 1HZ
- Recapture time: Average 0.1s
- Hot startup time: Average 1s
- Warm startup time: Average 30s
- Cold startup time: Average 36s
- Maximum position altitude: value="18000" tcsc="0" unitname="m" w:st="on">18000M
- Maximum speed rate: value="515" tcsc="0" unitname="m" w:st="on">515m/s
- Built-in antenna type: External power source porcelain antenna
- Built-in antenna voltage: 3.3V±5%
- Built-in antenna current: 6mA
- Built-in antenna gain: 27dB
- Interface: Touch screen
- GUI interface: YES - 3D type
- Maps: via SD card
- Voice: YES
- GPS menu languages: English (United Kingdom), English (United States), Mandarin Putonghua Chinese, Cantonese Chinese, Taiwanese Chinese, German, Croatian, French, Italian, Dutch, Spanish, Romanian, Portuguese (Portugal), Portuguese (Brazil), Swedish, Slovak, Slovene, Serbian, Flemish, Bulgarian, Ukranian, Polish, Latvian, Lithuanian, Kalba, Hungarian, Dutch, Danish, Norwegian, Finnish, Czech, Greek, Russian, Thai, Malay (Actual voice and display language depends on the GPS software being used) Internet information
- value="3" tcsc="0" unitname="g" w:st="on">3G: supports WCDMA value="3" tcsc="0" unitname="g" w:st="on">3G dongles and WCDMA value="3" tcsc="0" unitname="g" w:st="on">3G sim cards
- WIFI: 802.11 b/g (included) Display information
- Screen: 7 Inch TFT LCD
- Resolution: 800 x 480 RGB
- Picture in picture: YES
- Choose your own background pic: YES
- Tilt angle: 0-90 degrees (button activated motorized tilt)
- Video systems: PAL, NTSC, AUTO Disc information
- Region free (also known as region zero or no region)
- CD, VCD, SVCD, DVD, MP3, WMA DVD information
- Auto play: ON/OFF
- 16:9, 4:3 PS, 4:value="3" tcsc="0" unitname="lb" w:st="on">3 LB
- DVD menu languages: English, Chinese, German, Spanish, French, Portuguese, Latin, Italian DVB-T information
- Digital TV receiving standard: MPEG-2
- Automatic and manual search
- Display: 16:9, 4:3
- Languages: English, German, French, Italian, Spanish, Turkish, Greek, Russian, Czech, Slovak, Vietnamese, Chinese Audio information
- Max audio output: 45W x 4
- Signal-to-noise ratio (SNR): >85dB
- User adjustable EQ: Bass, Treble, Balance, and Fade AM/FM radio tuner information
- AM frequency range: 522~1710KHz (Worldwide)
- FM tuning range: 87.5~108.0MHz (Worldwide)
- RDS system: YES Bluetooth 2.1 Media player information
- Video formats supported (up tp 1080p): H.264, MPEG 1/2, MPEG 4, VC-1, Real Video nth="9" w:st="on" year="2008">8/9/10, H.263
- Audio formats supported: MP3 / WMA / EAAC+ / AC3
- Image formats supported: JPG Connection information
- IPOD input
- USB input
- GPS antenna input
- DVB-T antenna input
- Radio antenna input
- RCA audio OUT x2 (front L and R)
- RCA audio OUT x2 (rear L and R)
- Aux-L IN
- Aux-R IN
- Subwoofer
- Video IN
- Video OUT x2
- Camera IN
- Left front speaker x2
- Right front speaker x2
- Left rear speaker x2
- Right rear speaker x2 Control information
- IR window
- Eject
- Screen angle adjust up
- Screen angle adjust down
- Volume decrease
- Volume increase
- GPS toggle
- Power ON/OFF
- Reset
- Microphone
Main menu languages: English and Chinese
Dimensions: value="175" tcsc="0" unitname="mm" w:st="on">175mm x value="150" tcsc="0" unitname="mm" w:st="on">150mm x value="100" tcsc="0" unitname="mm" w:st="on">100mm (L x W x H)
Front panel: value="220" tcsc="0" unitname="mm" w:st="on">220mm x value="20" tcsc="0" unitname="mm" w:st="on">20mm x value="130" tcsc="0" unitname="mm" w:st="on">130mm (L x W x H)
Product Notes
The Volkswagen Emperor has value="3" tcsc="0" unitname="g" w:st="on">3G internet functionality but requires the use of a value="3" tcsc="0" unitname="g" w:st="on">3G dongle and your own value="3" tcsc="0" unitname="g" w:st="on">3G sim card. This unit has steering wheel control
Has PiP (picture in picture) functionality
This product supports the DVB-T digital TV standard, which is not used worldwide. Please check to see if DVB-T will work in your region.
This DVB-T product receives MPEG-2.
Connect your iPod to listen to your entire music collection on your car stereo system
The USB port is a great way to hook up your portable media player with your car entertainment center
Special GPS Note: This model is compatible with most brands of GPS software - however hardware specific software such as Garmin may not run on this unit. We can provide the GPS-enabled hardware only, not the software. We do not provide GPS software.The installation of this Car DVD Player should only be performed or supervised by a professional. If you need further information you can refer to this - Information On Installing A Car DVD Player
Package Contents
Volkswagen Emperor car DVD
Remote control
54 Mbps 802.11b/g WIFI dongle
GPS antenna with coax connection
DVB-T antenna with coax connection
13 pin round male to 30-pin male apple connector + female full USB cable
Micro USB male to full USB female cable
Male value="5" tcsc="0" unitname="mm" w:st="on">5mm radio antenna to female value="3" tcsc="0" unitname="mm" w:st="on">3mm radio antenna
AV cables
Stylus
Power cables with decoder for Volkswagen
User manual - English
Frequently Asked Questions
Can I surf the net on this unit?
Accessing the internet on The Volkswagen Emperor is a truly amazing experience especially at value="3" tcsc="0" unitname="g" w:st="on">3G speeds!
You mentioned that the screen resolution for this unit is 800 x 480 pixels versus conventional car DVD player systems which are 480 x 234 resolution. In plain English, what does that do for me?Remember when you used to use those chunky old cathode ray tube computer monitors. That's like existing car DVD systems. Then they came out with those really thin LCD monitors where the picture was brilliant like Albert Einstein? That's the Volkswagen Emperor!
I have a 4th generation iPod, will it work with this Car DVD Player?
It should. This model was tested with multiple generation iPods and worked fine with all the original Apple models we tested.
Does this cool in-car total solution support the Greek language?
While the main menu system does not support the Greek language, the DVB-T system does however support the Greek language. What's more, if your GPS software comes in Greek then the GPS "Voice" and "Text" will be in Greek. Most popular GPS software titles come in a variety of languages. As for media playback with Greek subtitles, we suggest you download free software from the web to hardsub your Greek subtitles to your AVI files for video playback.
Is the magnetic base of the GPS antenna strong enough to be placed on a moving car?
Yes, the antenna comes with a very powerful magnet. It'll stay stuck on despite the rockiest ride.
What GPS software comes with this car navigation powerhouse? Is it Route 66?
Testing software always changes, so even we can't say in advance what software you'll be getting. It's an evaluation copy anyway so therefore purchasing your own GPS software is encouraged.
Seriously, why should I buy this over other car DVD players?
Do a google search for value="3" tcsc="0" unitname="g" w:st="on">3G internet car DVD players. If you happen to find one (good luck), compare its price with The one. We're sure you'll see why the Volkswagen Emperor is a winner hands down.
|
