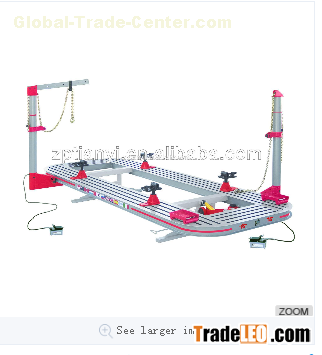

CE approved auto body frame puller/auto body frame machine/auto calibration/Body calibrator
2016-09-11 22:32  Views:132
Price:0.00 USD/-
Brand:Tianyi
Model:TY-380
MOQ:-0 -
Send Inquiry

Features

       1. The platform is made of square tube.

       2. The hydraulic towers can be moved freely alongside the platform and turn 360° as operating. The hydraulic cylinders work vertically, resulting in maximum force and most powerful effectiveness.

       3. High quality chains and plate tools are used flexibly and conveniently with long life. The entire series of tool accessories enable to do any misshape correction work.

       4. Hydraulic system with good design has powerful driving force, long life and low failure rate.

       5. Portable measuring system is easier for workers.

       6. Major clamps fix the auto quickly, firmly and accurately.



specification



Platform Length

5200mm

Platform Width

2000mm

Platform Height

500mm
Hydraulic Pressure  70MPa

Post Max. Tension

10T

Pneumatic Pressure Range

0.8MPa

Post Working Range

360°

Max. Lifting Weight

3500kg

Total Weight

2500kg
