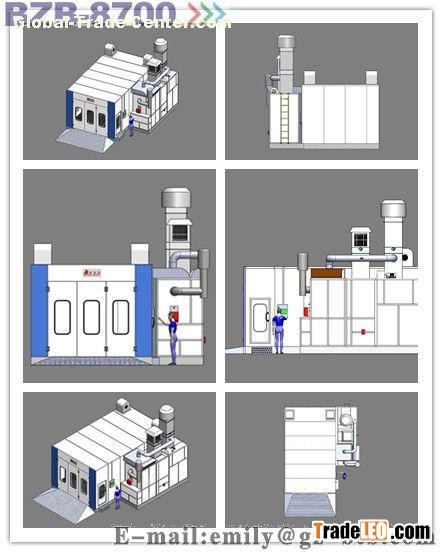

Outside Size: (mm)  7040x5990x3450

Front Door: (mm) 3000(w)x2600(h)

Inside Size: (mm) 6900x4000x2650

Total Power: (kw) 25

Cabin System

1. Wallboard

EPS (epispastics polystyrene) Colorful Steel Skin Heat Insulated Panel, Wall Boards: 70mm Thick, Ceiling Panel: 50mm Thick. Life Span: 20 years.

2. basement

Full Grid, Adjustable Height, Galvanized Steel Sheet Construction, Three Embossed Steel Ramps.

3. Enclosure

Sturdy body structure, especially the side door with a pressure lock which will automatically open when the pressure inside is over the limit.

Air Circulation System

Inlet Turbine Fan Model: YDW4.5L

Outlet Turbine Fan

Model: 4-82-6.3E

Capacity: 14000m3/h 30000m3/h

Power: 4kw 15kw

Pressure: 800Pa 1236Pa

Quantity: 2sets 1set

The circulation system covers a set of automatic valve and two sets of manual valve. Manual adjustment valves are placed in inhaling and exhaust flue to control airflow volume and adjust pressure. A stainless steel trapezoid hood and a stainless cone hood are placed on the top of blow flue and exhaust flue separately.

40 PCS Ceiling Nozzles with 2 Centrifugal (power 1.5kw/set) fans drying water paint.

Air Purification system

Dual Filtering Structure, The Primary Filter Can Capture Granules Larger than 15 μ M. Ceiling Filter Capture Granules Bigger than 5μ M. The Whole Purification System Has Capacity of Large Volume of Dust. It's Filtering Rate Reaches 98%.

Heating System

1. Burner Italy Riello Brand, RG5S Diesel Burner, 260000Kcal/h, 20N Damp Motor.

2. Heat Energy Converters Stainless Steel, Argon Arc Welding, Heat Exchange Rate 85%.

Max Temp: 80c

Heating Time: 4-6min (20-60. C)

Fuel Consumption: 6-8kg/vehicle

Lighting System

Ceiling Light: 32 PCS 36W

Philips Lamp; Bottom Light: 32 PCS 20W

Philips Lamp: 800 Lux

Electric Controlling System ?PLC Controlling, Soft Touching Button, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm.

Environmental Conversation System

No-pump water curtain paint for mist filtering device hat can reduce more than 98% of the fog without the trouble of replacing drying-method filter by fully mixing fog, water and air, and ensures a qualified exhaust according to the relevant state standards.
