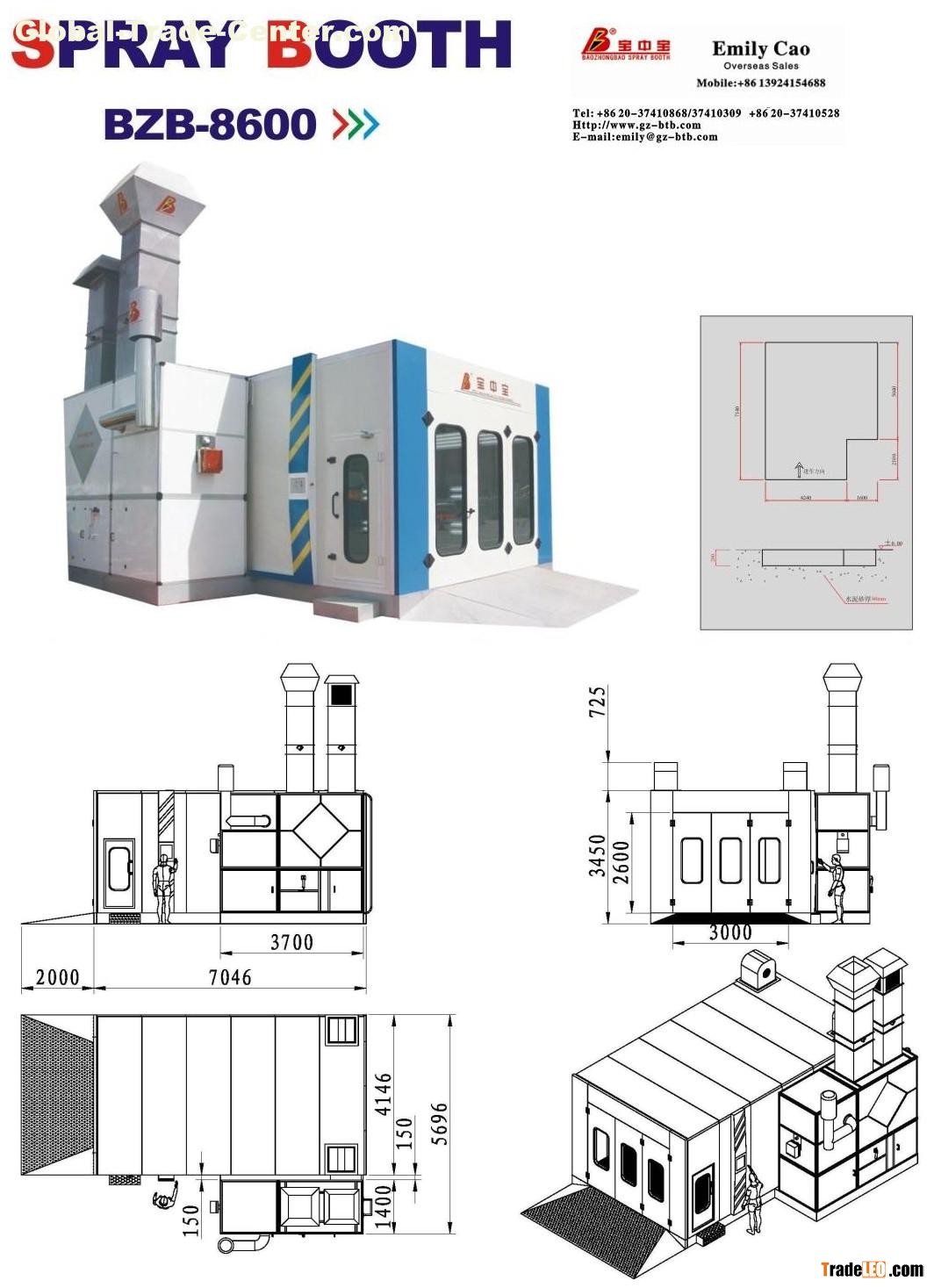

8600 Spray booth 6.9m*4m*2.65m

Outside dimension:7046×5696×4175mm（L×W×H）

Inside dimension: 6900×4000×2650mm（L×W×H）

Front door dimension: 3000×2600mm（W×H）

Working door dimension: 650×1800mm（W×H

Cabin system:

1)? Wall panel: 70mm thick flame-resistant and heat-preserving EPS board; 0.5mm thick colored steel.

Roof panel: 50mm thick flame-resistant and heat-preserving Rock Wool; 0.5mm thick colored steel;

2)? basement: adjustable base, complete grilles, all ramps, height is 280mm; Main door and emergency door glasses are toughened glass.

Air circulation system:

Inhaling Ventilator

Model: DDF-630B

Blower Capacity: 25000m3/h

Pressure: 560Pa

Rolling Speed: 1440rpm

Power: 7.5kw

Quantity: 1 set

Exhaust Ventilator

Model: DDF-630B

Blower Capacity: 25000m3/h

Pressure: 560Pa

Rolling Speed: 1440rpm

Power: 7.5kw

Quantity: 1 set

Manual adjustment valves are placed in inhaling and exhaust duct to control airflow volume and adjust pressure. One set automatic damper, 20N actuator.

36 pcs ceiling nozzles with 2 centrifugal fans (1.5kw/set) for drying water base paint. Air volume: 38500m3/h; air speed: 0.5m/s; air recycling times: 400times/h.

2 sets(0.18kw/set) air dry systems separately controlled to fasten the water based paint drying.

Generator: separate air inlet and outlet duct and cabin; quadrate steel frame; specially design of the heating recovery system for saving energy effectively

Air purification system: Pre-filter, high efficiency filter (ceiling filter), floor filter, active carbon;

Heat system: stainless steel SUS304 heat exchanger, RIELLO RG5S diesel burner one stage, heating capacity is 260000Kcal/h, electric damper from spraying to baking cycle; the heating time is 5~7 minutes; with heat recovery system for energy the second time used, effectively save energy. The efficiency of recovery is 30%.

Lighting system:≥1100Lux

Ceiling Lights: 8Groupsx4Pcs=32Pcs x36W;  side lights: 8Groupsx2Pcsx2rows=32Pcs x36W Philips lamp. Ballasts Professional and durable.

Control box: Micro-Computer Programme Controlling, touch button, main circuit has multi-protection. Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, emergency stop, temperature controller, temperature limit controller, air pressure meter, emergency stop, breakdown alarm;

Total power: 23.5KW
