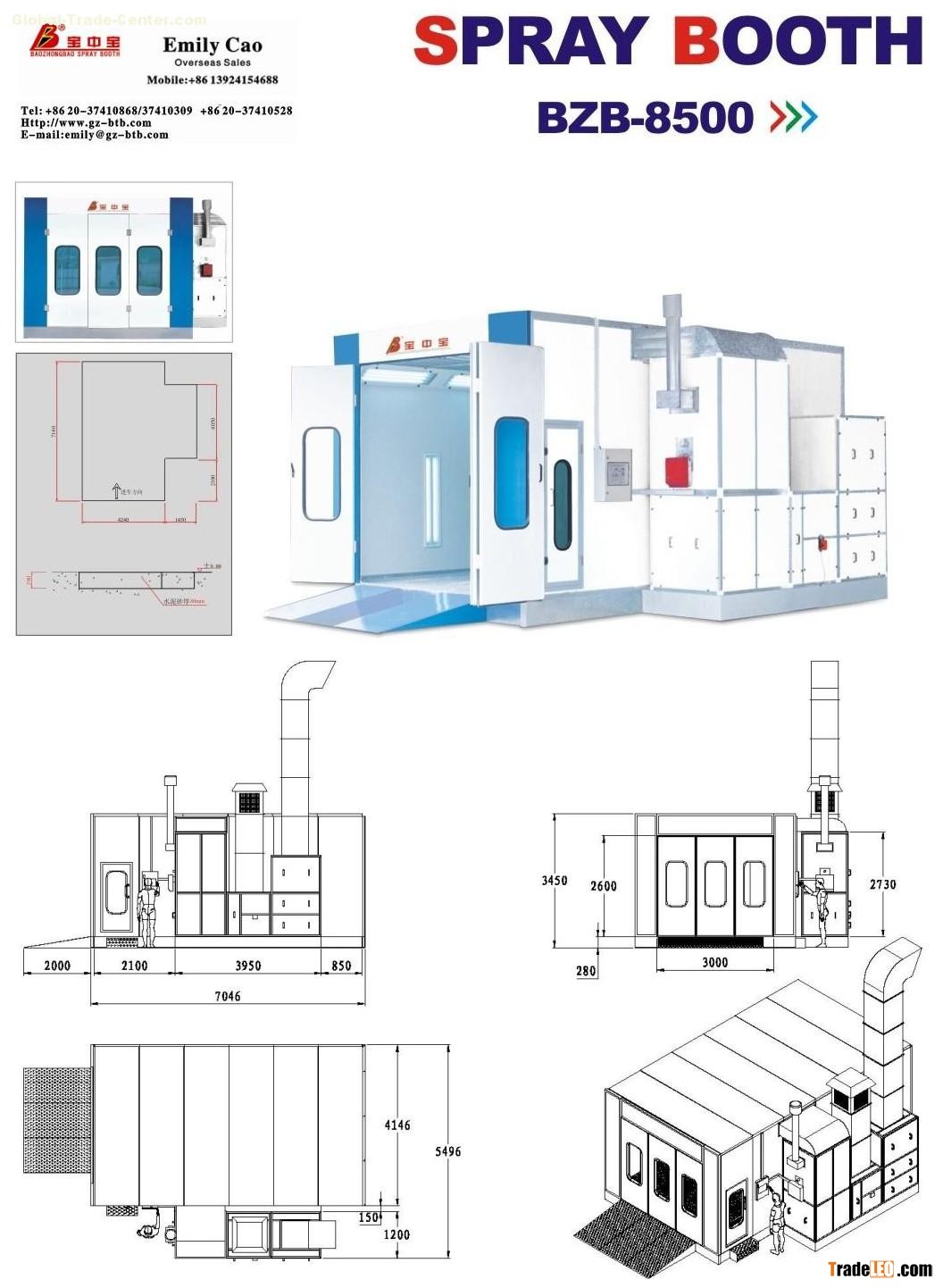

8500 Spray booth 6.9m*4m*2.65m

Outside dimension:7000×5550×3450mm（L×W×H）

Inside dimension: 6900×4000×2650mm（L×W×H）

Front door dimension: 3000×2600mm（W×H）

Working door dimension: 650×1800mm（W×H）

Cabin system:

1)? Wall panel: 70mm thick flame-resistant and heat-preserving EPS panel; 0.476 thick colored steel.

Roof panel: 50mm thick flame-resistant and heat-preserving Rock Wool panel; 0.476 thick colored steel.

2)? basement: steel structure base, complete grilles, three ramps, height is 280mm;

Air circulation system:

Inhaling Ventilator

Model: YDW-4.5L

Blower Capacity: 24000m3/h

Pressure: 800Pa

Rolling Speed: 940rpm

Power: 4kw

Quantity: 2 sets

Exhaust Ventilator

Model: YDW5.6M

Blower Capacity: 21000m3/h

Pressure: 800Pa

Rolling Speed: 900rpm

Power: 7.5kw

Quantity: 1 set

One set automatic damper, 20N actuator

Generator: separate air inlet and outlet duct and cabin; quadrate steel frame;

Air purification system: Pre-filter, high efficiency filter (ceiling filter), floor filter, active carbon;

Heat system: stainless steel SUS304 heat exchanger, RIELLO RG5S diesel burner one stage, heating capacity is 260000Kcal/h, electric damper from spraying to baking cycle; the heating time is 5~7 minutes;

Lighting system:≥1100Lux

Ceiling Lights: 8Groupsx4Pcs=32Pcs x36W

Side Vertical Lights: 8Groupsx2Pcs=16Pcs x36W Philips lamp, Ballasts Professional and durable.

Control box: Micro-Computer Programme Controlling, main circuit has multi-protection. Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, emergency stop, temperature controller, temperature limit controller, air pressure meter, emergency stop, breakdown alarm;

Power: 17.7KW
