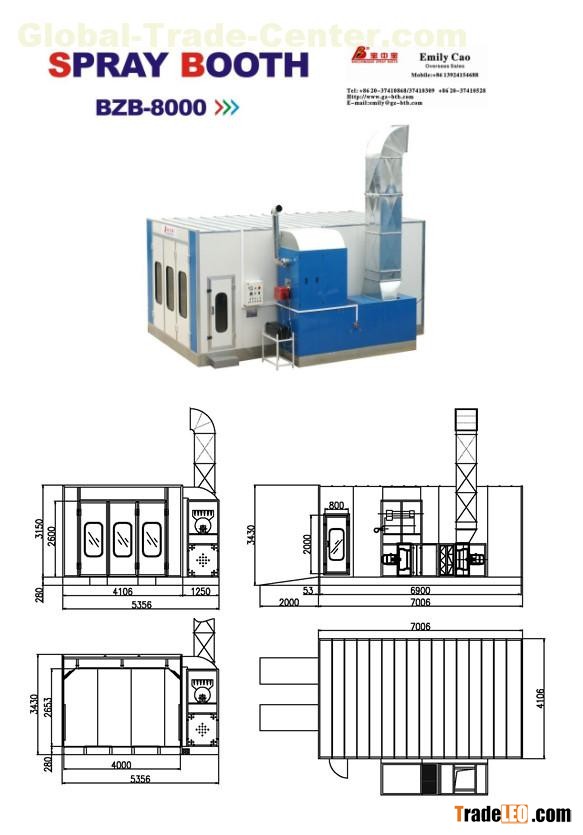

BZB-8000 Spray Booth　

1) Outside dimension: 7000*5360*3430mm(L*W*H);

2) Inside dimension: 6900*4000*2750mm(L*W*H);

3) basement: Complete zinc steel assemble, height is 280mm, all grilles; 2 PCS of ramp, support weight: 300kg-500kg;

4) Main door: 3-fold( 3 leaf), 3000*2700 mm (W*H);

5) Wall Panels: Thickness is 50 mm, and insulation is EPS panel; 0.5mm double skinned sheet; Roof panel is galvanized steel sheet construction;

6) Lighting: Ceiling Lights: 8Groups*4PCS=32PCS *36W; Side Lights: 8Groupsx2PCS=16PCS x36W; Philip tube;

7) Glass: All glass is toughened glass;

8) Generator: Back upper intake air, back upper extract air, quadrate steel frame, coated steel;

9) Intake and exhaust air system:

Intake fan: 1 turbo fan, 7.5KW motor, direct drive, capacity: 25000m3/h;

Extract fan: 1 turbo fan, 7.5KW motor, direct drive, capacity: 25000m3/h;

10) Heating system: RIELLO G20 diesel burner (one stage), heating capacity is 180000Kcal/h, electric damper from spraying to baking cycle, 20N actuator;

11) Filtering system: Pre-filter, high efficiency filter (ceiling filter), floor filter, extract filter, active carbon filter;

12) Control box: Spraying, risen-temperature spraying, baking temperature, time setting, lighting switch, hour meter, pressure gauge, emergency stop, failure alarm, temperature control meter.
