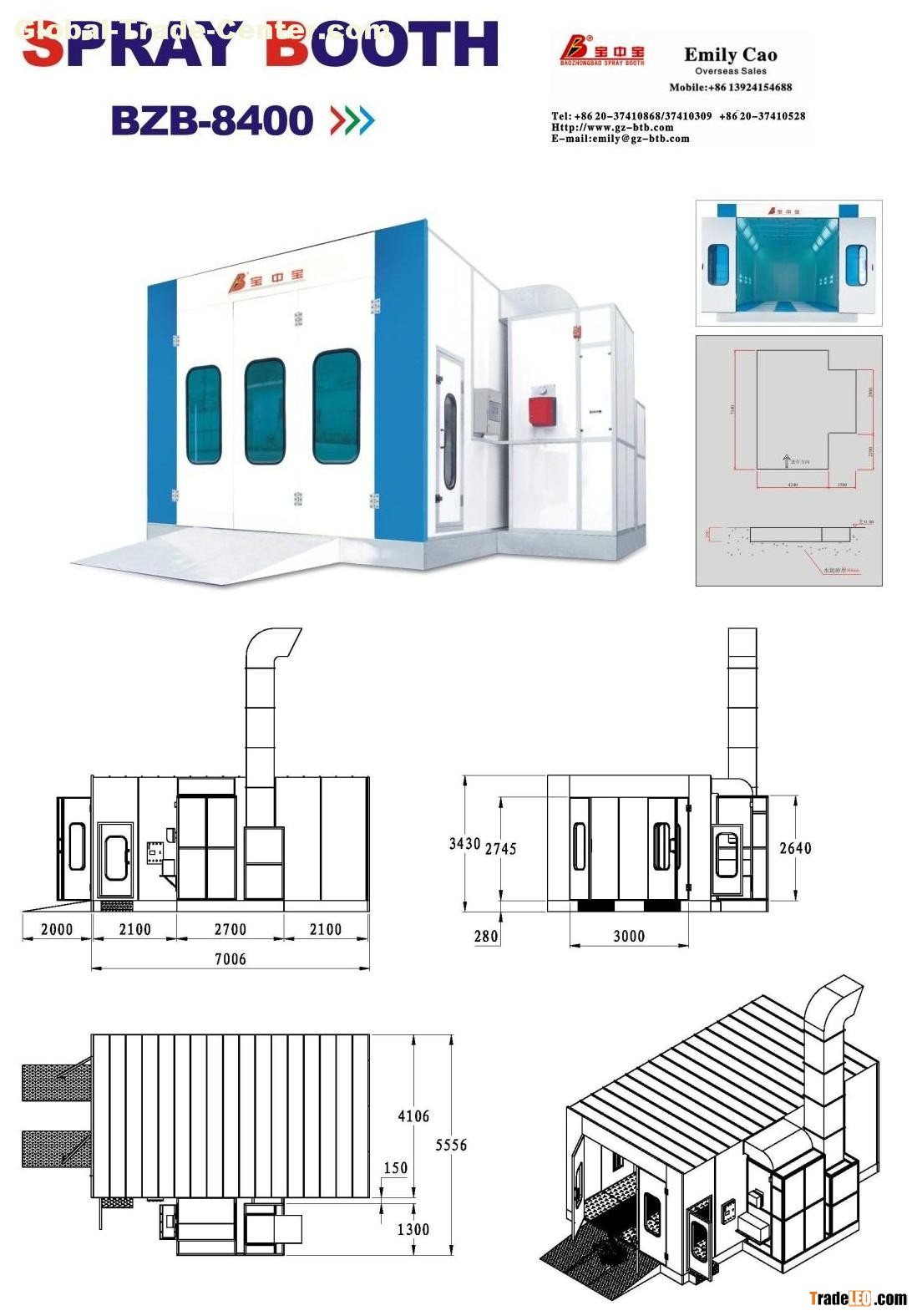

BZB-8400 Spray Booth

Internal Size (mm) 6900x4000x2650

External Size (mm) 7000x5560x3430

Front Door (mm) Three-fold 3000(W)× 2600(H)

Service Door (mm) One-fold 650x1800mm, with Pressure lock

Total Power 16kw

Cabin System

1. Wallboard EPS (epispastics polystyrene) Colorful Steel Skin Boards, 50mm Thick, 0.426 thick colored steel, Width: 1150mm. Tongue & Groove Style, Compound Construction. Anti-flame and Heat-Insulation Galvanized Roof Panel.  Main door and emergency door glasses are toughened glass.

2. basement Galvanized Steel Sheet and Square Steel Pipe assembling(280mm), Two Rows Grid & Three Embossed Plate.

3. Ramp Three Embossed Steel Plates, 900(W) x 2000(L)mm

Air Intake and Exhaust System

Inhaling Ventilator Model: YDW4.5L1

Blower capacity: 12000m3/h

Pressure: 815Pa

Rolling speed: 900rpm

Power: 4kw

Quantity: 2 sets

Exhaust Ventilator: Model: YDW 5.6S

Blower capacity: 15000m3/h

Pressure: 810Pa

Rolling speed: 900rpm

Power: 5.5kw

Quantity: 1set

Air Volume: 24000m3/h; Air Speed: 0.35m/s

Manual adjustment valves are placed in inhaling and exhaust duct to control airflow volume and adjust pressure.

Outlet ducts with 4 pcs chimney, 1 pcs elbow.

Generator: slid upward side intake air; rare upward side exhaust; quadrate steel frame;

Air Purification System

Pre-filter, high efficiency filter (ceiling filter), floor filter

Heating System

1. Burner Italy Riello Brand, G20 Diesel Burner, 180000Kcal/h, 10N Damp Motor, 180000Kcal/h, 10N Damp Motor.

2. Heat Energy Converters Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%.

Max temp:80℃, heating time: 4-6min(20-60℃), fuel consumption: 4-5kg/vehicle.

Lighting System

32 pieces of 36w Philips lamps, and 16 pieces of 36w bottom lamps, 1000LUX.

Ballasts Professional and durable.

Electronic Controlling System

Micro-Computer Programme Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm.

Environmental  System

Multi-layer fiberglass filter, active-carbon
