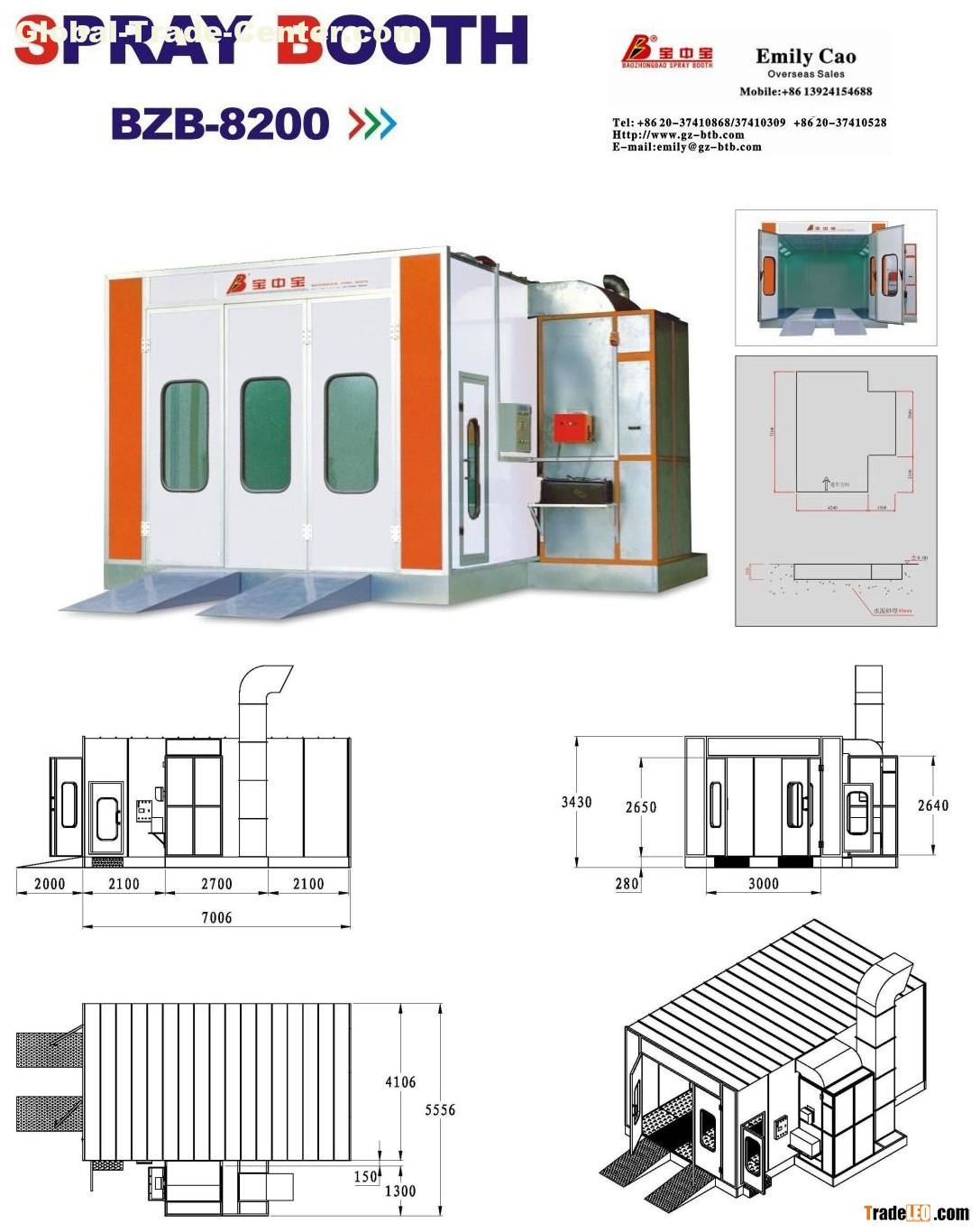

8200 Spray booth 6.9m*4m*2.65m

Outside dimension: 7000×5560×3430mm（L×W×H）

Inside dimension: 6900×4000×2650mm（L×W×H）

Front door dimension: 3000×2600mm（W×H）

Working door dimension: 650×1800mm（W×H）

Cabin system:

1)? Wall panel: 50mm thick flame-resistant and heat-preserving EPS board; 0.426 thick colored steel. Width: 1150mm.

Roof panel: galvanized sheet; Main door and emergency door glasses are toughened glass.

2)? basement: steel structure base; two line grilles, three diamond plates; height is 280mm; two ramps made of embossed plate, 2000(L)*600(W)mm.

Air circulation system:

"Inlet Fan: Capacity: 12000m3/h"

Power: 4kw/set

Quantity: 2sets

Outlet ducts with 4 pcs chimney, 1 pcs elbow.

One set automatic damper, 10N actuator.

Generator: slid upward side intake air; rare upward side exhaust; quadrate steel frame;

Air purification system: Pre-filter, high efficiency filter (ceiling filter), floor filter;

Heat system: stainless steel SUS304 heat exchanger, RIELLO G20 diesel burner one stage, heating capacity is 180000Kcal/h, electric damper from spraying to baking cycle; oil consumption 4~6L/set; the heating time is 5~7 minutes;

Lighting system:≥900Lux

Ceiling Lights: 8Groupsx4Pcs=32Pcs x36W

Philips lamp, Ballasts Professional and durable.

Control box: It is assembled by good electronic components. Main circuit has Multi-protection. Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, emergency stop, breakdown alarm;

Total power: 10KW
