Model Spec. (mm) Spec. (in) Working Pressure, Mpa Water flow, cbm/h Jet height, m Diameter of Area, m

KZL-15 15 G1/2 0.08-1.0 0.3-20 0.4-10

KZL-20 20 G3/4 0.12-2.0 0.8-30 0.6-12

KZL-25 25 G1 0.15-2.5 1.0-5.0 1.0-15

KZL-40 40 G1-1/2 0.23-3.5 4.0-18.0 2.0-20 0.5-3.0

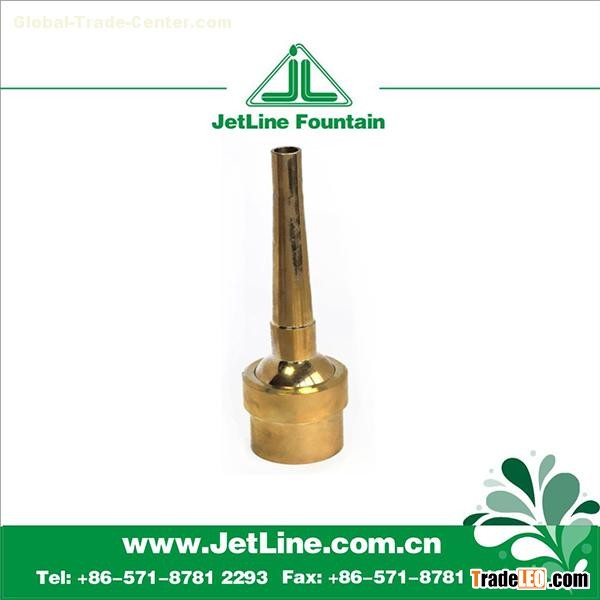

The Lance Jets (I) are small and medium size nozzles capable of achieving a maximum height of 14metres.

Integral ball joint allows to get parabolic or vertical jets, offering a wide range of water displays.

These nozzles are usually arranged in a group.All sizes have a ball joint with which the jet can be pivoted up to 15° from the vertical plane. This feature makes it possible to generate interesting water patterns.
