Outside Size

7150×4000×3430 mm ( L×W×H)

Inside Size

6000×4000×2650 mm ( L×W×H)

Total power

7KW

Cabin System

Top Wallboard

Galvanized Steel Sheet Construction

Side Wallboard

EPS(epispastics polystyrene)Colorful Steel Skin Boards, 50mm Thick, Compound Construction, Anti-flame and Heat-Insulation Galvanized Steel Roof Panel.

basement

Two Grid& Three Embossed Plate, Galvanized Steel Sheet Construction.

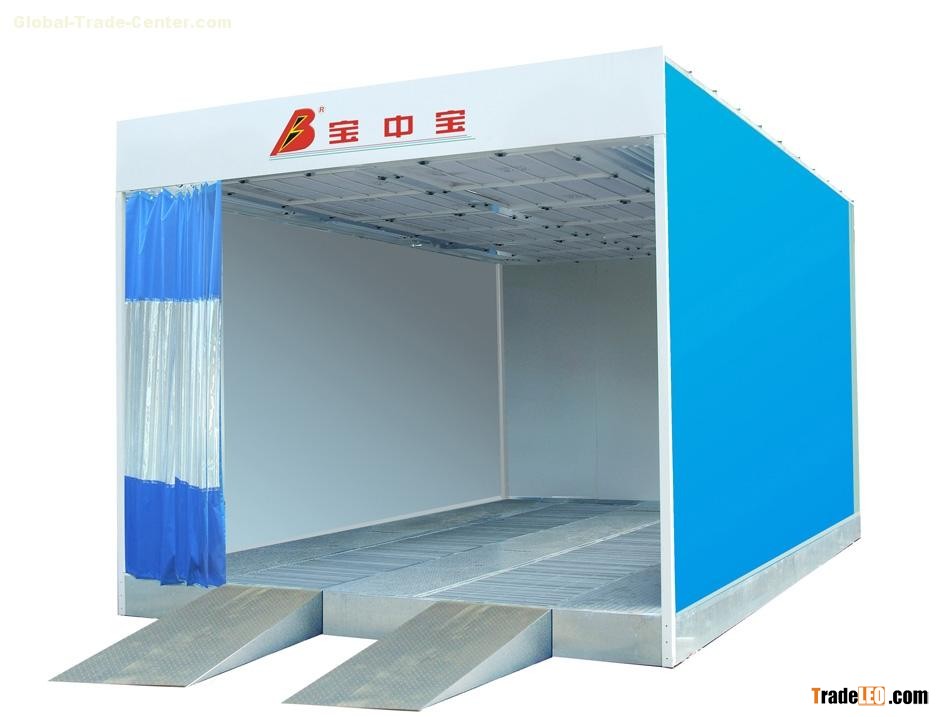

Two sides with PVC soft curtain, back with wall panel.

Air Circulation System

Model

YDW-5.6S

Blower Capacity

15000m3/h

Pressure

800Pa

Rolling Speed

900rpm

Power

5.5kw

Quantity

1 sets

Air Purification System

Multi-layer Filtering Structure, supported by the ceiling meshwork, easy to change. The Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of Dust.

Environmental  System

Dual Filtering Structure, The First Filter, under the Grids, Can Capture bigger Granules. The Second Filter, the Fiber glasses Filter, under the Exhaust Cabin, Capture the rest Granules.

Lighting System

Ceiling Light: 24 pcs 36w Philips Lamp;

Electric Controlling System

Light Switch, Mixing Switch, Emergency Stop Switch, Breakdown Alarm
