Brand:BZB
Model:8600
MOQ:-0 -
Send Inquiry
| internal size:6900*4000*2650mm | loading : 40HQ contain 1 unit | |||||||
| external size:7040*5696*3500mm | *3450 | weight:5 tons 35CBM | ||||||
| entrance size:3000(w)*2700(H)mm | packing:loading in pieces | |||||||
| total power:23.4KW | ||||||||

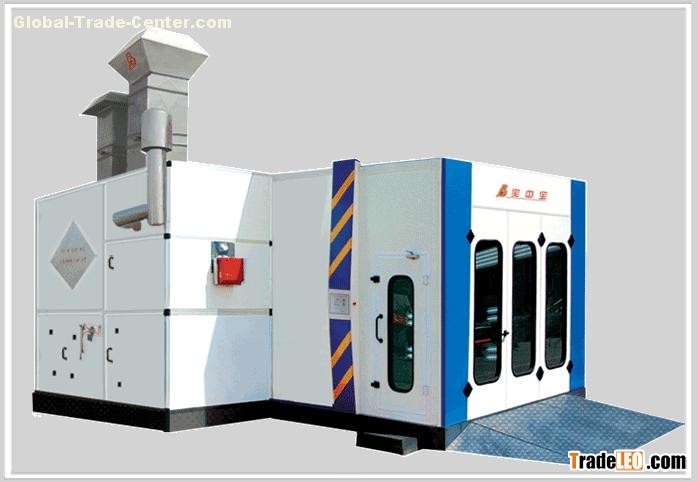

| BZB-8600 | auto spray booth | |||||||
| Cabin System | Wallboard | EPS (epispastics polystyrene)Colorful Steel Skin Boards,70mm Thick, Tongue & Groove Style Compound Construction, Aluminum-alloy frame,Anti-flame and Heat-Insulation | ||||||
| basement: | Full Grid, Adjustable Height,Galvanized Steel Sheet Construction,Three Embossed Steel Ramps. | |||||||
| Air Circulation System | Inlet Turbine Fan | Capacity: 25000m3/h | Outlet Turbine Fan | Capacity: 25000m3/h | ||||
| Power: 7.5kw | Power: 7.5kw | |||||||
| Quantity: 1set | Quantity: 1set | |||||||
| 54 pcs Ceiling Nozzles with 3 Centrifugal Fans for Drying Water Paint | ||||||||
| Air Volume: 37000m3/h; Air Speed: 0.5m/s | ||||||||
| Air Purification System | Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air Pressure Balance Gauge, TSP≤1.2mg/m3 | |||||||
| Heating System | Burner | Italy Riello Brand,RG5S Diesel Burner, 260000Kcal/h, 20N Damp Motor | ||||||
| Heat Energy Converter | Stainless Steel, Argon Arc Welding,The Heat Exchange Rate 85% | |||||||
| Max Temp:80degree， Heating Time: 4-5min(20-60degree), Fuel Consumption: 4-6kg/vehicle | ||||||||
