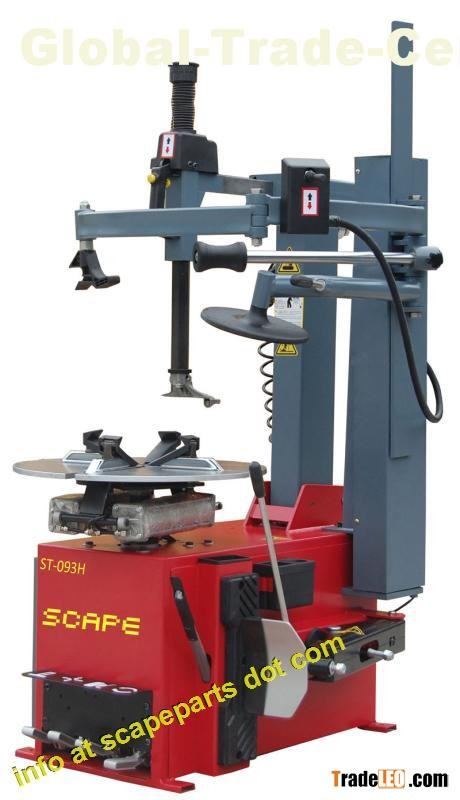

Auto tyre Changing machine ST-093H

Features:

*Full automatic tyre changer with pneumatic tilting column,
*Pneumatic vertical and horizontal arms locking at optional position.
*Right help arm
*With self-centering function.
*Optional plastic mounting/demounting head helps protect expensive alloy wheels
*Strong pneumatic bead breaker

Use Range:

1. Automotive repairing company
2. Transportation company, motorcycle
3. Tire specialized service station

Specification:

Motor power: 0.75-1.1KW
Power supply: 110V/220V 1pH 220V/380V 3pH
Wheel diameter: 1000mm
Wheel width: 3"-15" (76-410mm)
Outside rim clamping: 10"-20"
Inside rim clamping: 12"-24"
Air supply: 0.8~1MPa
Bead breaker force: 2500Kg
Noise level: 70dB
Package size(mm): 1200*1000*1100
Weight: 260/270kg
