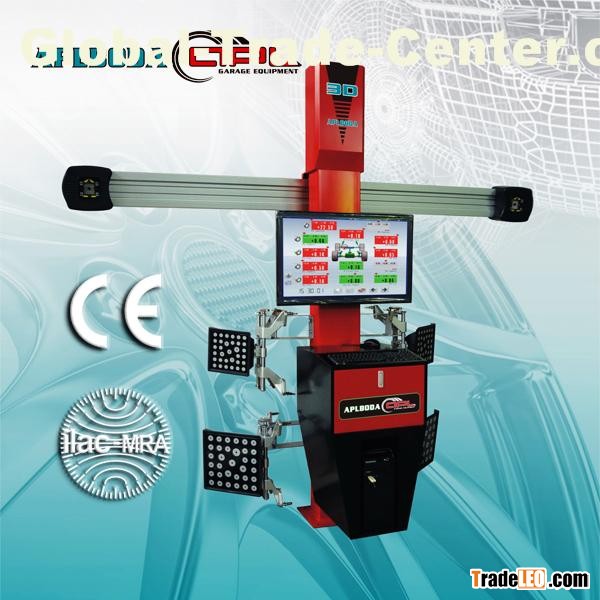

wheel alignment  machine

                        configuration of wheel alignment machine

      installation diagram of  3D wheel alignment machine

Standard configuration( wheel alignment machine ):

1) High precision digital camera x 2

2) Camera Pillar x 1

3) Target plate x 4

4) Cabinet x 1

5) Computer x 1

6) 32 inch Liquid crystal TV x 1

7) Color printer x 1

8) 4-point wheel clamp x 4

9) Clamp bracket x 4

10) Mechanical turntable x 2

11) Steering wheel lock x 1

12) Brake paddle depressor x 1

13) Wedge pad x2

14) User manual x 1
