Price:0.36 USD/Meter
Brand:YX
Model:YXSP202
MOQ:500 Meter

Send Inquiry

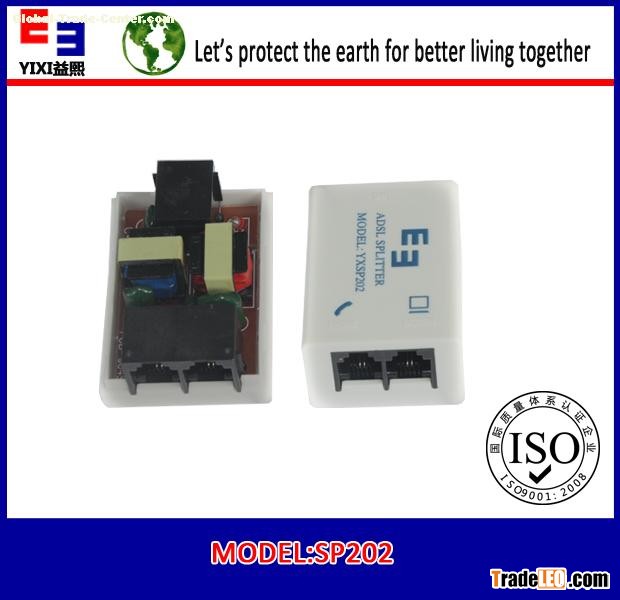

Three 6P2C RJ11,1 input port (Line), 2 output ports (Phone, Modem) India adsl modem splitter Remarks: India Adsl splitter can eliminate the interference between data signal and voice signal transmitted in the same telephone line and make the internet and telephone go both at the same time(Data signal for internet voice signal for telephone) The structure of Adsl splitter/filter: One RJ11 at one end for line. Two RJ11 at the other end for phone and modem. Brand YIXI Model YXSP202 Input interface RJ11 Output interface RJ11 Bandwidth 4.4(MHz) Transmission distance 100(m) Power supplier voltage 12(V) Power supply frequency 20K(Hz) Power supply 5(W) Working temparature -15*85(°C) SpecificationPOST PORT IMPEDANCE Zr=600 Ω Modem impedance 25 kHz to 22.8 kHz 100 Ω Insertion loss @ 1000 Hz <0.3dB 200 Hz=14 dB 500 Hz< f< 2000 Hz >=18 dB 2000 Hz< f< 3400 Hz >=14 dB Longitudinal conversion loss LCL 200 Hz to 1 kHz < 58 dB 1 kHz to 3 kHz < 53 dB Delay distortion 200 Hz to 600 Hz < 250 usec 600 Hz to 3.2 kHz < 200 usec 3.2 kHz to 4 kHz < 250 usec Frequencies and levels for pulse metering (in 200 Ω) 12/16 kHz ± 1 % <3 dB DC resistance <25 Ω Isolation resistance, branch-branch 100 VDC; term = ∞ Ω >5MΩ Stop band attenuation 30 kHz45 dB 138 kHz55dB Input impedance(loading of ADSL signal path) 25 kHz to 2208 kHz <=0.3 dB
