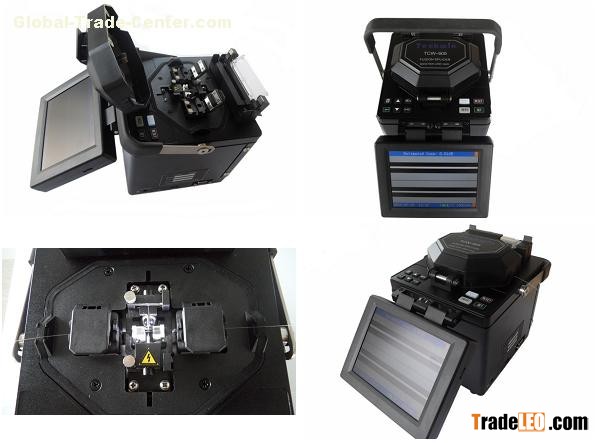

Brand:Techwin
Model:TCW-605
MOQ:1 Sets
The TCW-605 Series adopt high-speed image processing technology and special precision- positioning technology, automatically finish the whole process of fiber fusion in 8 seconds typically, TFT LCD monitor displays all steps of fiber fusion clear at a glance.
Widely used for SM and MM Quartz Fiber with diameter 80-150μm, coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less.
Ideal tools for construction and maintenance of fiber and cable in both field and laboratory applications.
Support Chinese, Japanese,
Features
l Anyone anytime anywhere can use easily
l Not only a Fusion Splicer, but also your partner who make your job easy and happy
l The rugged construction plus improved reliability by resisting shock, dust, and rain
l 5.6 inch TFT color LCD monitor with anti-reflective coating
l The advanced core to core fiber profile alignment system(PAS)
l ARC Calibration FREE system
ARC Calibration sub-menu included in the Menu too, can do the ARC Calibration by Manual when necessary
l X/Y axes was displayed or both X and Y were displayed simultaneously, Magnification up to 300 times
l 8 seconds splicing time, 30 seconds Heat-Shrinking
l
l Built-in high capacity battery, support 220 cycles(splicing /tube heating), to meet one days’ work
l Long Electrode Lifetime, up to 4000 times
l The new wind-cover design, enhance the ability to prevent the dust & wind, Max. wind velocity of 15m/s
l Three Splicing modes: auto, half-auto, manual
l Built-in super high-brightness LED supply convenience for night work
l Auto calculate splicing loss based dual camera cladding axis alignment data
l Small bulk and light weight, only 2.8kg include battery
l 4000 results Storage
l 2.0 USB data interface &VGA
l One button operation to finish results download or software update
l Close shield splice automatically, Close heater lid heat automatically
l One year warranty( TWO years or THREE years warranty is available for special order)
STANDARD PACKAGE:
ARC Fusion Splicer, Carrying Case, High Precision Fiber Cleaver, Tri-hole Fiber Coat Stripper, AC Adapter/Battery Charger, Battery Charger Cord, Battery Pack, Spare Electrodes(one pair), Blower Brush, V-groove Cleaning, Quick Reference Guide, Video Instruction Manual, Cooling Tray, Alcohol Dispenser, Monitor Coating, Monitor Cover, USB Flash Disk.
