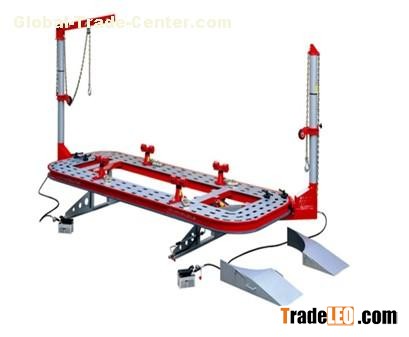

Auto Body Collision Repair (SINF10)

1. The platform is spliced with high quality steel plate through carbon dioxide welding, with high strength and good rigidity.
2. The tower are 360 degrees movable and flexibly, the cylinder works vertically without any components forces consumption, powerful and accurate tensile force.
3. Hydraulic system imported from American POWERTEAM with original packing makes it powerful and gives it a long useful life and a low failure rate.
4. Various measuring systems with high accuracy can be selected.





Technical Specification
Working Platform length 5200mm
Working Platform width 2000mm
Working Platform height 570mm
The max working presure of hydraulic system 70MPa
The max lifting force of the tower cylinder 95KN
The pulling range of the tower 360
The pressure of the air source 0.6~0.8MPa
M lifti i Max lifting weight 3600kg
Equipment gross weight 2400kg
Quantity in 20 feet container 7pcs
