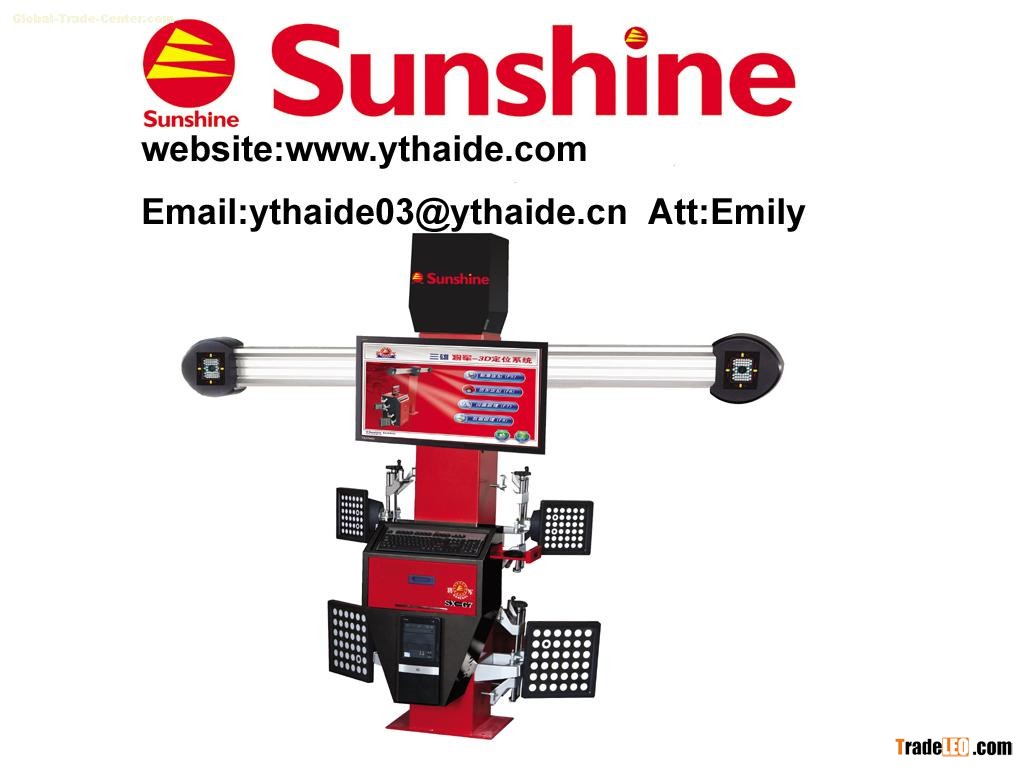

Brand:SUNSHINE
Model:SX-G7
MOQ:1 Sets
Standard Configuration
exquisite medium-sized cabinets, DELL branded computers (Liquid Crystal Display), Canon printers, target disk, Pylon, brake holder, steering wheel holder, wedge-shaped pads, turnplate, transition blocks of turnplate
Software Features
Basic Functions:
parameters measurement such as camber, Caster, Kingpin inclination, Toe-in & Toe-out, Set back, Thrust angle
Extension Functions:
axis deviation measurement, wheel deviation measurement, animation, single-round measurements,vehicle lift measurement, steering wheel adjustment,
alignment platform horizon meausrement, engine bracket adjustment,toe-in locking measurement,toe-in curvature measurements, zero toe-in camber measurement
Related parameters:
| Measurement project | Accuracy | Measurement range | |
| Display accuracy | 1´/0.01mm | ||
| Camber | ±2´ | ±10° | |
| Caster | ±6´ | ±20° | |
| Kingpin Inclination | ±6´ | ±20° | |
| Toe-in & Toe-out | ±2´ | ±20° | |
| Set back | ±2´ | ±5° | |
| Thrust angle | ±2´ | ±5° | |
| Wheel Deviation | ±2mm | | |
| Axis Deviation | ±2mm | | |
