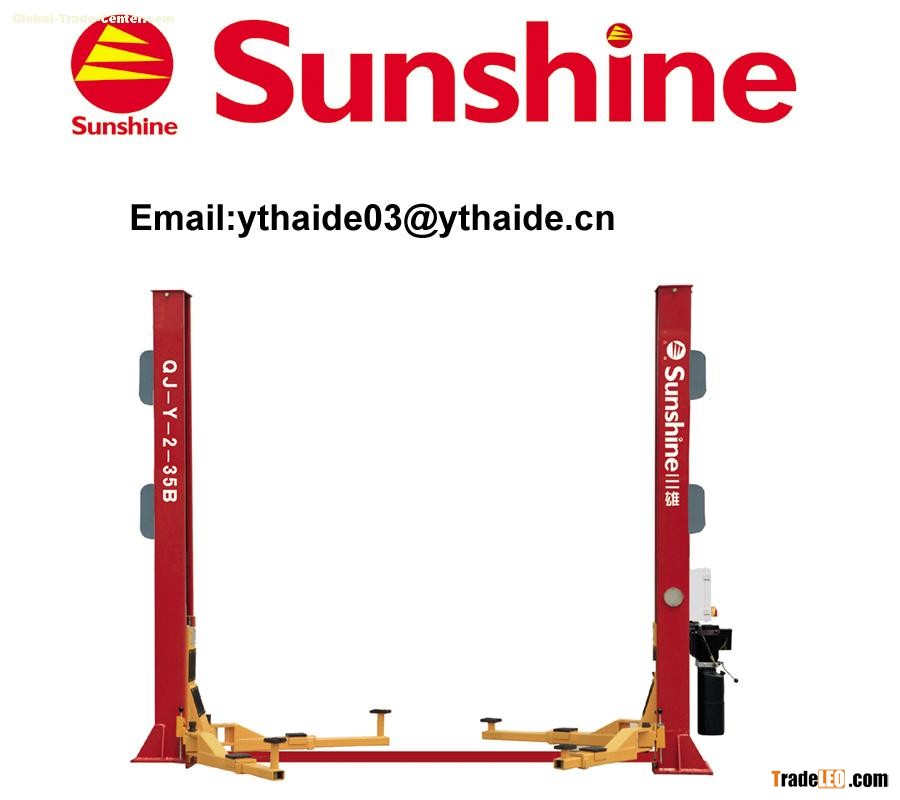

Model: QJ-Y-2-35B  floorplate  2 post lift

Electric release, 3.5 tons

Specifications:

Lifting capacity: 3500Kg (8000lbs)

Post Height: 2812mm

Car max lifting height: 1900mm

Minimum height: 115mm

Clearance between posts: 2800mm

Total width: 3419.6mm

Width of post material: 4.5mm

arm maximum length: 1100mm

arm minimum length: 750mm

Lifting Time: 50s

Lowering Time: 30s

Power Supply Voltage: 220V/380V ,1ph/3ph

Net Weight: 560Kg     Gross Weight :580Kg

Packing Dimension:

840*290*340MM and 2820*520*820MM

Cubic Meter: 1.5cbm

Shipping: 22 pieces / 20'container  46pieces / 40'container
